Facts and Figures
| Current Number | S105 |
|---|---|
| Railway Represented | Chicago Transit Authority |
| Builder | Baldwin/Westinghouse |
| Built In | 1920 |
| Builder's order id | 53556 |
| Currently in (State) | Illinois |
| --(Locality) | Union |
| Totally out of svc date | 1997 |
| (Initial retirement date) | 1978 |
| Car Type | locomotive |
| -subtype | B-W steeplecab |
| -designation | Type B |
| Status | stored inoperable |
| More info | http://www.irm.org/player/ctas105 |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 37'4" |
| Width | 8'6" |
| Height | 13'11" |
| Weight | 100000 |
| #Seats | n/a |
| #Wheels/Conf. | 8 |
| Total HP | 680 |
| Trucks | Baldwin |
| Brakes | 14EL |
| Compressor | WABCO D3F (2) |
| Control | WH HLF (337D2) |
| Motors | [WH 567LL (4)] |
| Voltage (if not 600DC) |
 |

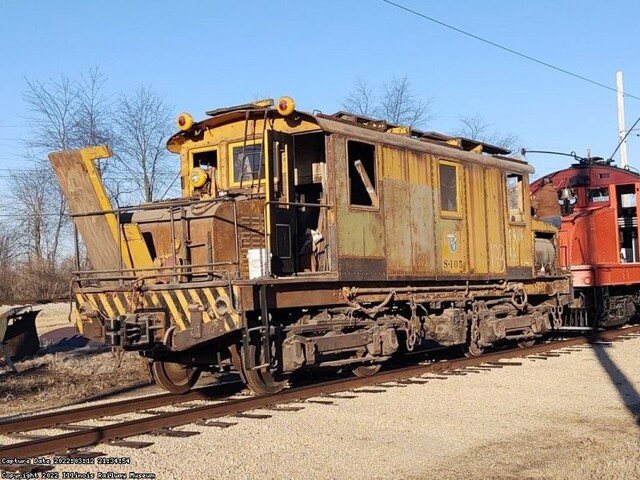

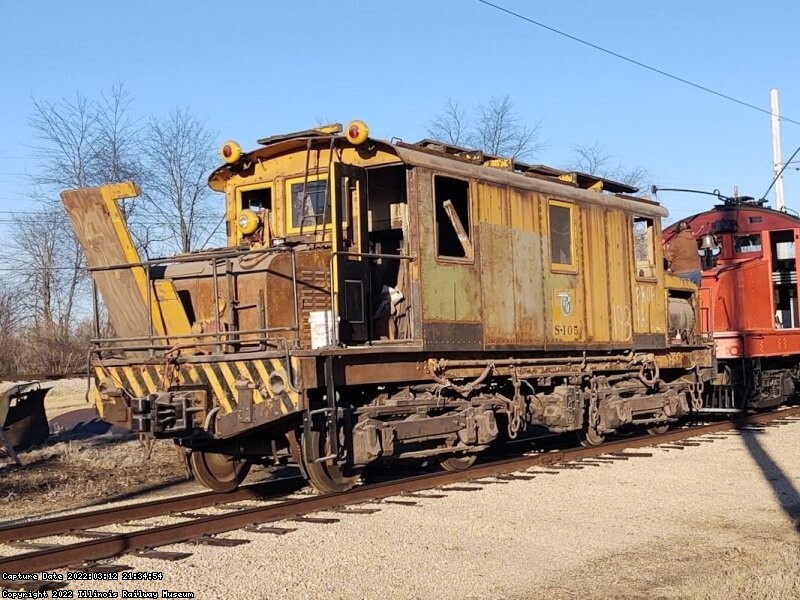

Locomotive S105 during switching at IRM in 2022 Illinois Railway Museum photo: https://www.irm.org/gallery/CTAS105/aag |
 |
Locomotive S105 in the shop at IRM in 2020 Illinois Railway Museum photo: https://www.irm.org/gallery/CTAS105/aaf |
