Current Number | 4451 |
---|---|
Railway Represented | Chicago Transit Authority |
Builder | Cincinnati Car Company |
Built In | 1924 |
Builder's order id | 2860 |
Currently in (State) | Illinois |
--(Locality) | South Elgin |
Totally out of svc date | 1975 |
(Initial retirement date) | 1973 |
Car Type | rapid transit car |
-subtype | elevated car |
-designation | |
Status | operated often |
More info | |
Gauge | 4'8.5" |
Construction | steel |
Roof type | AR |
Ended | DE |
Length | 48'6" |
Width | 8'11" |
Height | 13'3" |
Weight | 76800 |
#Seats | 52 |
#Wheels/Conf. | 8 |
Total HP | 340 |
Trucks | Baldwin 78-25A/72-22A |
Brakes | AMU (M23) |
Compressor | D3-F |
Control | WH ABLFM (XM110) |
Motors | WH 567R1 (2) |
Voltage (if not 600DC) |

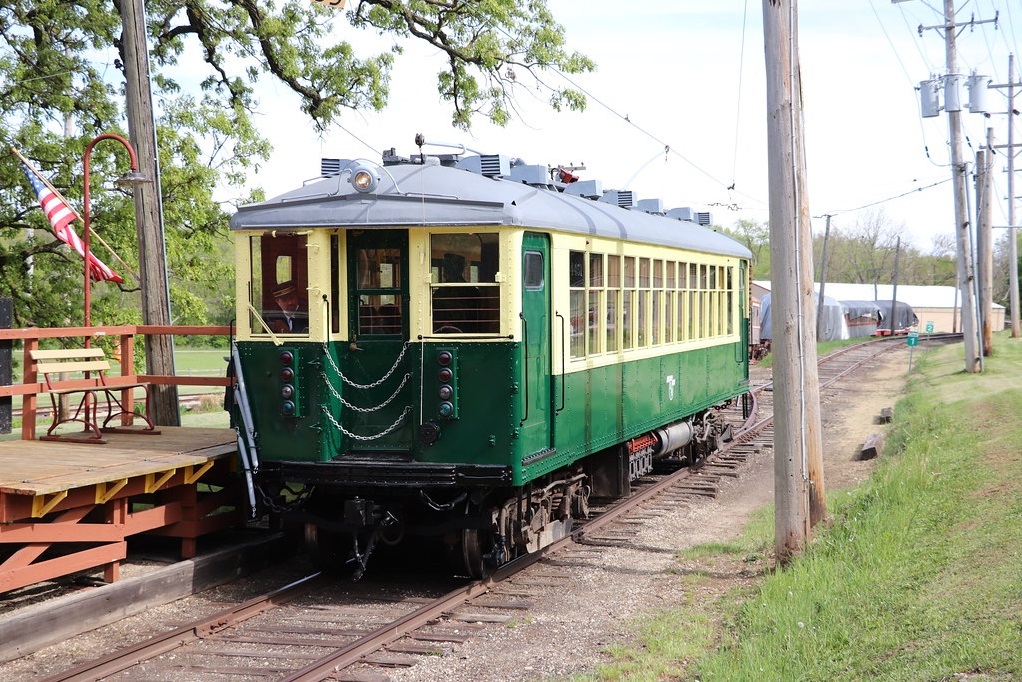

Car 4451 in operation at FRTM in 2021 Flickr photo: https://www.flickr.com/photos/19531332@N03/51188620557/ |

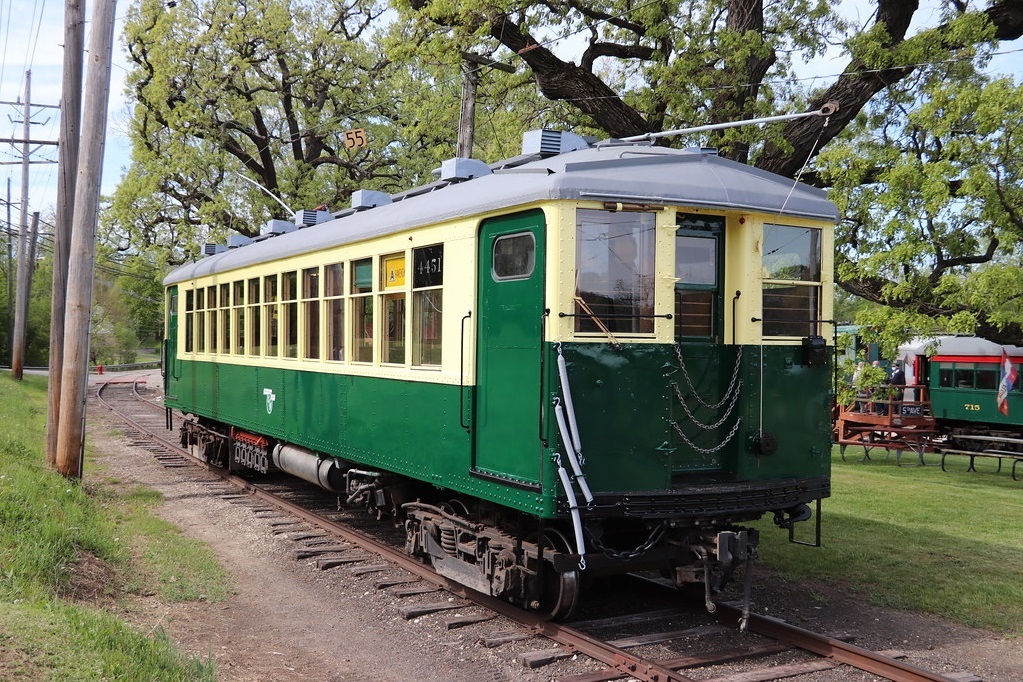

Car 4451 in operation at FRTM in 2021 Flickr photo: https://www.flickr.com/photos/19531332@N03/51190093844/ |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
Chicago Rapid Transit (Illinois, Chicago) | 4451 | 1924 | 1947 | NO | NO |
Chicago Transit Authority (Illinois, Chicago) | 4451 | 1947 | 1975 | NO | NO |
Railway Equipment Leasing & Investment Corporation (Illinois, South Elgin) | 4451 | 1975 | 1984 | YES | NO |
Fox River Trolley Museum (Illinois, South Elgin) | 4451 | 1984 | present | YES | NO |
[No preview available] |
Car 4451 in operation at FRTM in 2010 YouTube video: https://www.youtube.com/watch?v=G9f6fpP5WnE |
