Facts and Figures
| Current Number | 18 |
|---|---|
| Railway Represented | Shaker Heights Rapid Transit |
| Builder | G.C. Kuhlman Car Company |
| Built In | 1914 |
| Builder's order id | 583 |
| Currently in (State) | Illinois |
| --(Locality) | Union |
| Totally out of svc date | 1961 |
| (Initial retirement date) | 1960 |
| Car Type | streetcar |
| -subtype | center entrance |
| -designation | |
| Status | operated occasionally |
| More info | http://hickscarworks.blogspot.com/2013/10/h1218.html |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | SE |
| Length | 51'0" |
| Width | 8'5" |
| Height | 11'8" |
| Weight | 47000 |
| #Seats | 59 |
| #Wheels/Conf. | 8 |
| Total HP | 192 |
| Trucks | Brill 68E1 |
| Brakes | SME (M18A) |
| Compressor | BB2 |
| Control | WH HLF (15E1) |
| Motors | WH 340 (4) |
| Voltage (if not 600DC) |
 |

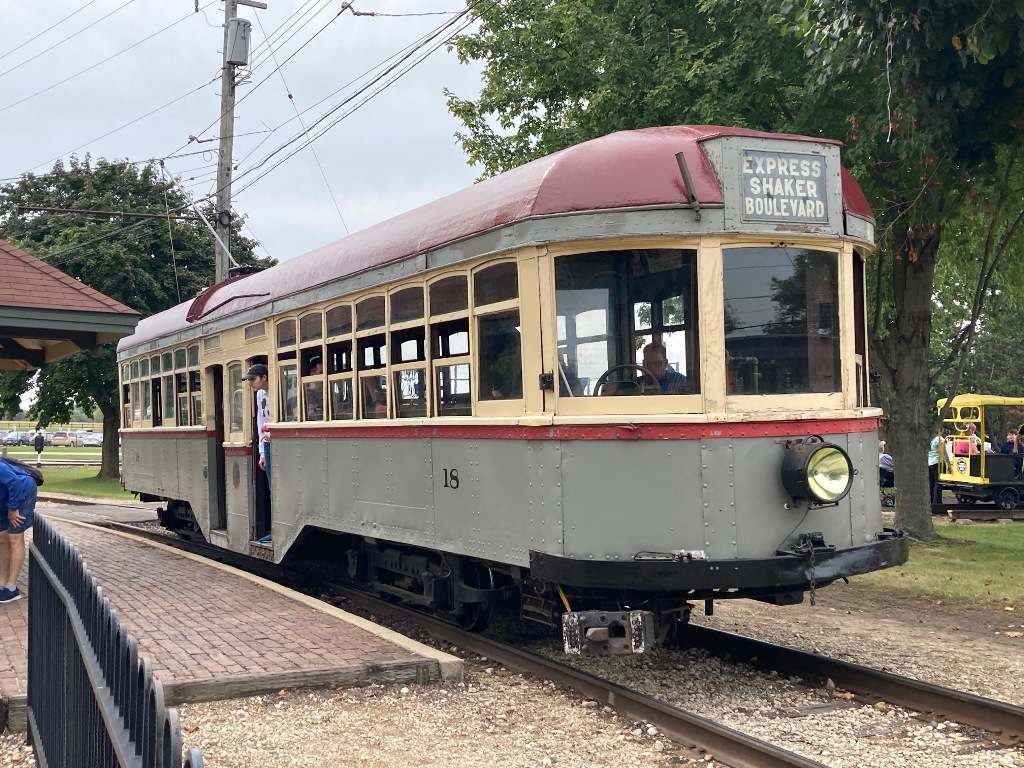

Car 18 in operation at IRM in 2023 Hicks Car Works photo: https://hickscarworks.blogspot.com/2023/09/showcase-saturday.html |
 |

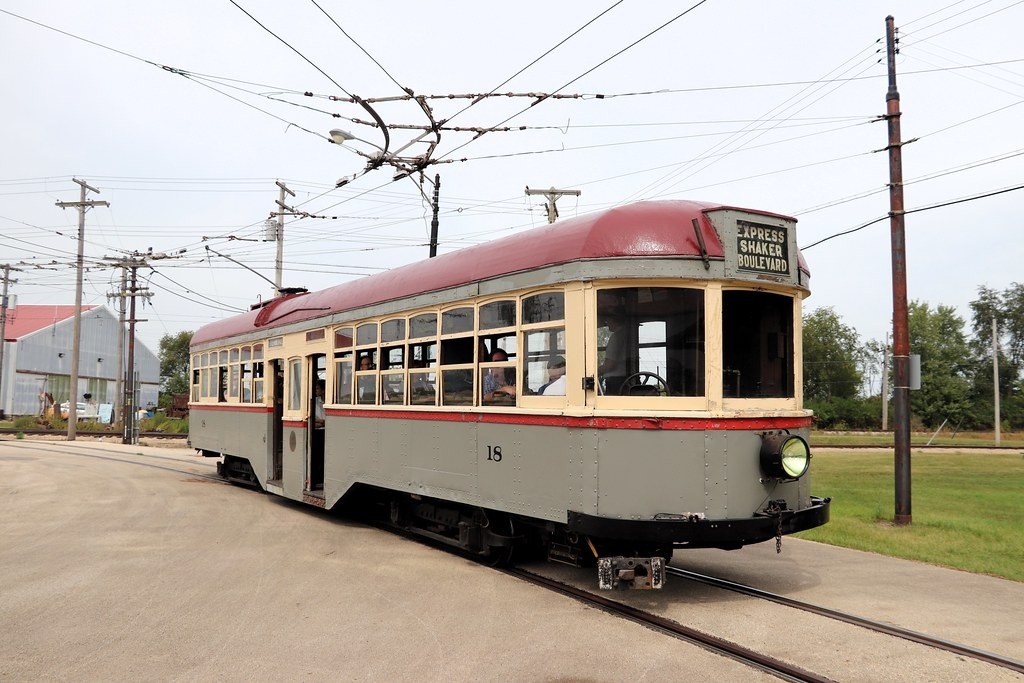

Car 18 in operation at IRM in 2023 Flickr photo: https://www.flickr.com/photos/19531332@N03/53202393044/ |
