Facts and Figures
| Current Number | 1 |
|---|---|
| Railway Represented | Shaker Heights Rapid Transit |
| Builder | G.C. Kuhlman Car Company |
| Built In | 1914 |
| Builder's order id | 586 |
| Currently in (State) | Connecticut |
| --(Locality) | East Windsor |
| Totally out of svc date | 1960 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | center entrance |
| -designation | |
| Status | displayed inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 51'0" |
| Width | 8'5" |
| Height | 11'8" |
| Weight | 50000 |
| #Seats | 59 |
| #Wheels/Conf. | 8 |
| Total HP | 192 |
| Trucks | Brill 68E1 |
| Brakes | SME (M18A) |
| Compressor | Christensen |
| Control | WH HLF (15E1) |
| Motors | WH 340 (4) |
| Voltage (if not 600DC) |
 |

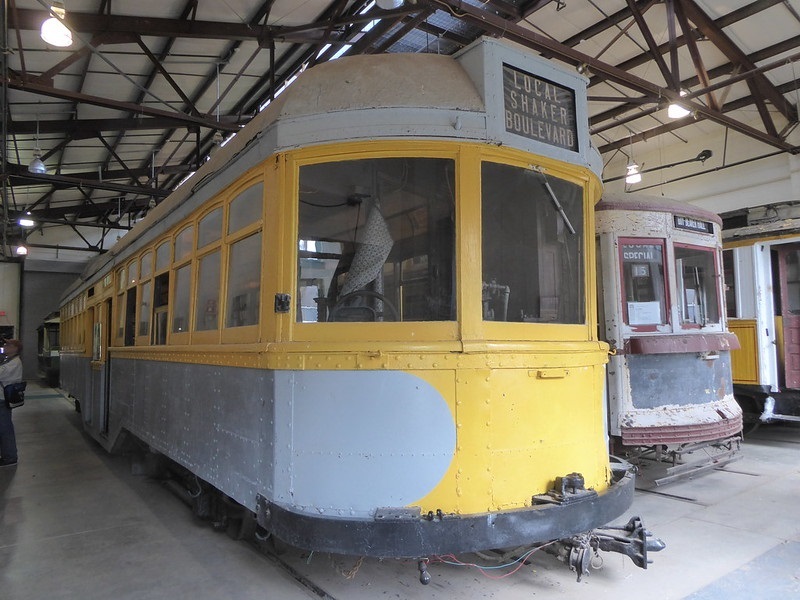

Car 1 on display at CTM in 2015 Flickr photo: https://www.flickr.com/photos/buses-international/17381098670/ |
 |

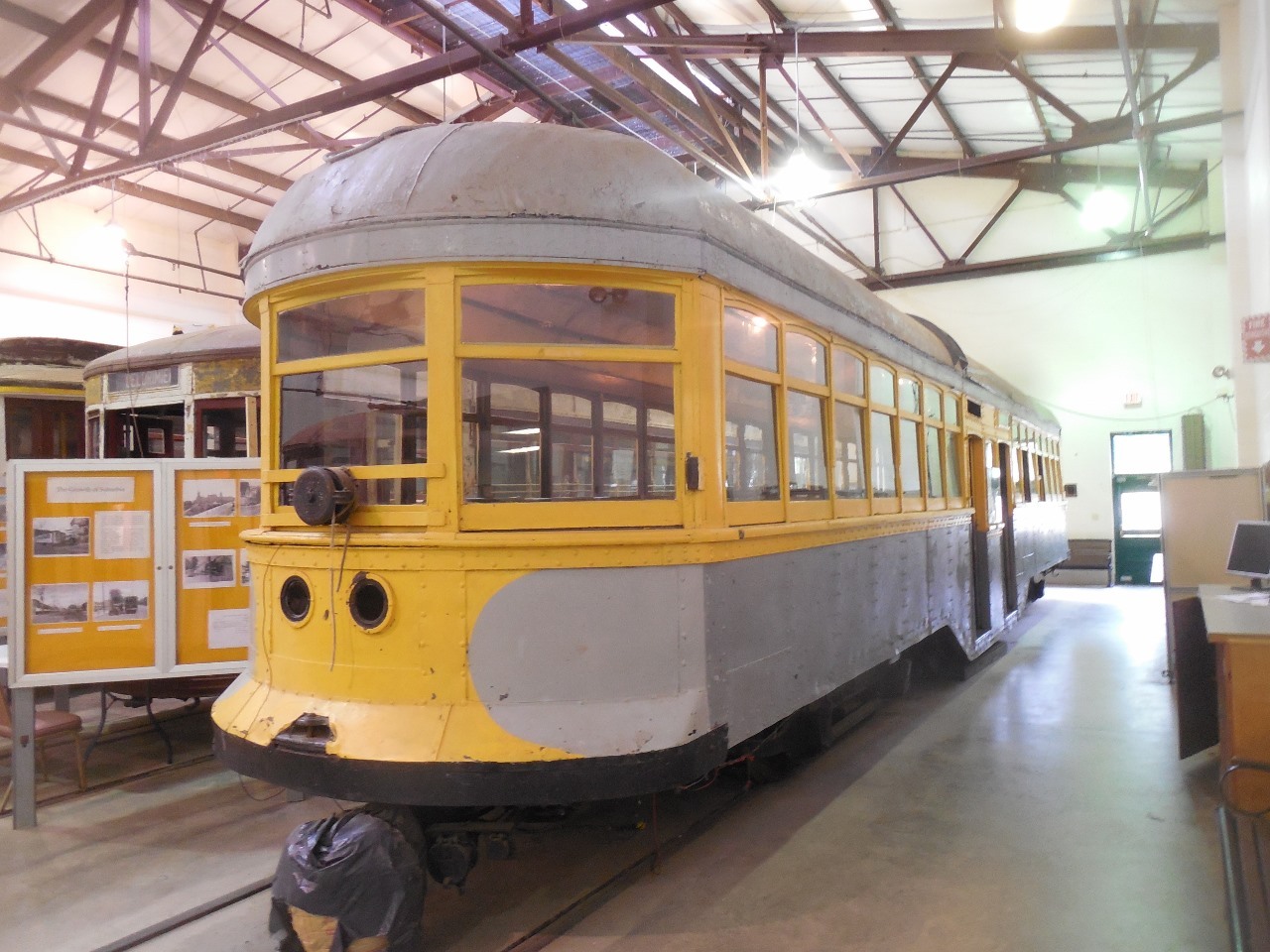

Car 1 on display at CTM in 2016 Hicks Car Works photo: https://hickscarworks.blogspot.com/2016/06/visit-to-warehouse-point.html |
