Facts and Figures
| Current Number | 840 |
|---|---|
| Railway Represented | Connecticut Company |
| Builder | J.M. Jones & Sons |
| Built In | 1905 |
| Builder's order id | |
| Currently in (State) | Connecticut |
| --(Locality) | East Windsor |
| Totally out of svc date | 1948 |
| (Initial retirement date) | 1947 |
| Car Type | streetcar |
| -subtype | open car, 15-bench |
| -designation | |
| Status | stored inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | RR |
| Ended | DE |
| Length | 42'0" |
| Width | 10'7" |
| Height | 12'2" |
| Weight | 36500 |
| #Seats | 75 |
| #Wheels/Conf. | 8 |
| Total HP | 145 |
| Trucks | Taylor SB |
| Brakes | Straight Air |
| Compressor | WABCO D1EG |
| Control | K-6 |
| Motors | WH 93A (2) |
| Voltage (if not 600DC) |
 |

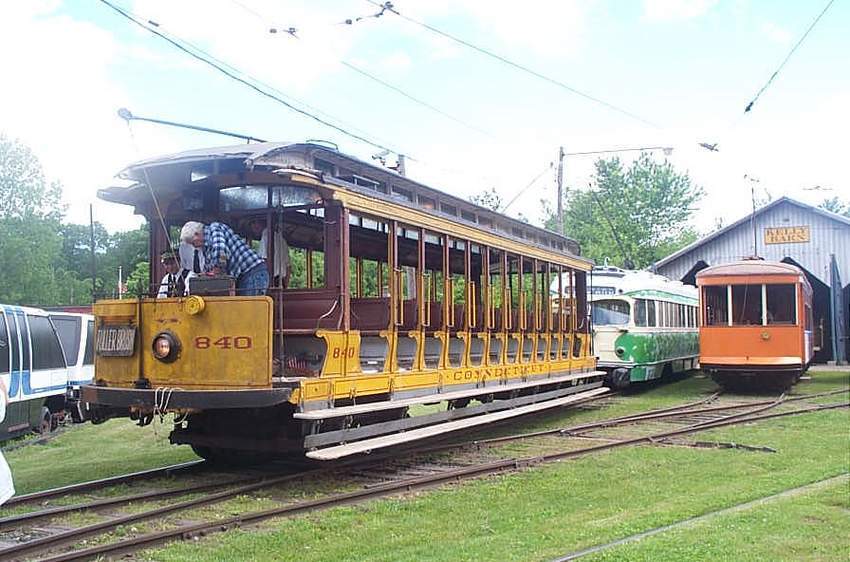

Car 840 in operation at CTM in 2005 Great Rails Photo Archive photo: http://photos.greatrails.net/s/?p=48349 |
 |

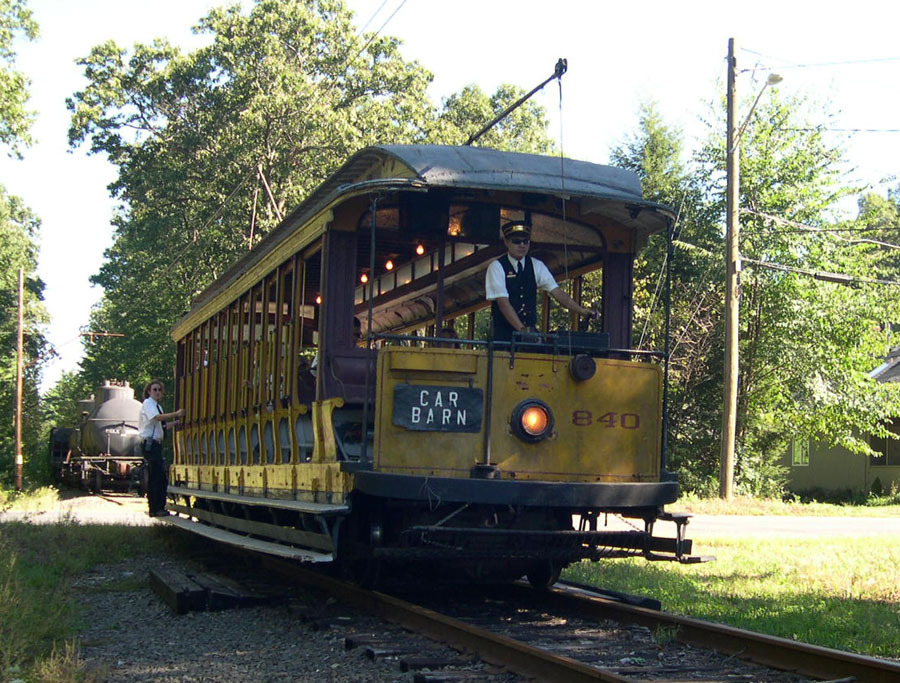

Car 840 in operation at CTM Connecticut Trolley Museum photo: https://www.ct-trolley.org/assets/img/collection/connecticut-company-840.jpg |
