Facts and Figures
| Current Number | 401 |
|---|---|
| Railway Represented | Consolidated Railway |
| Builder | J.M. Jones & Sons |
| Built In | 1906 |
| Builder's order id | |
| Currently in (State) | Connecticut |
| --(Locality) | East Haven |
| Totally out of svc date | 1948 |
| (Initial retirement date) | 1947 |
| Car Type | streetcar |
| -subtype | open car, 15-bench |
| -designation | |
| Status | displayed inoperable |
| More info | http://www.bera.org/cgi-bin/viewcar.pl?car=401 |
| Gauge | 4'8.5" |
| Construction | wood |
| Roof type | RR |
| Ended | DE |
| Length | 42'0" |
| Width | |
| Height | |
| Weight | 36500 |
| #Seats | 75 |
| #Wheels/Conf. | 8 |
| Total HP | 145 |
| Trucks | Taylor SB |
| Brakes | Straight Air |
| Compressor | GE CP27 |
| Control | K-6 |
| Motors | WH 93A (2) |
| Voltage (if not 600DC) |
 |

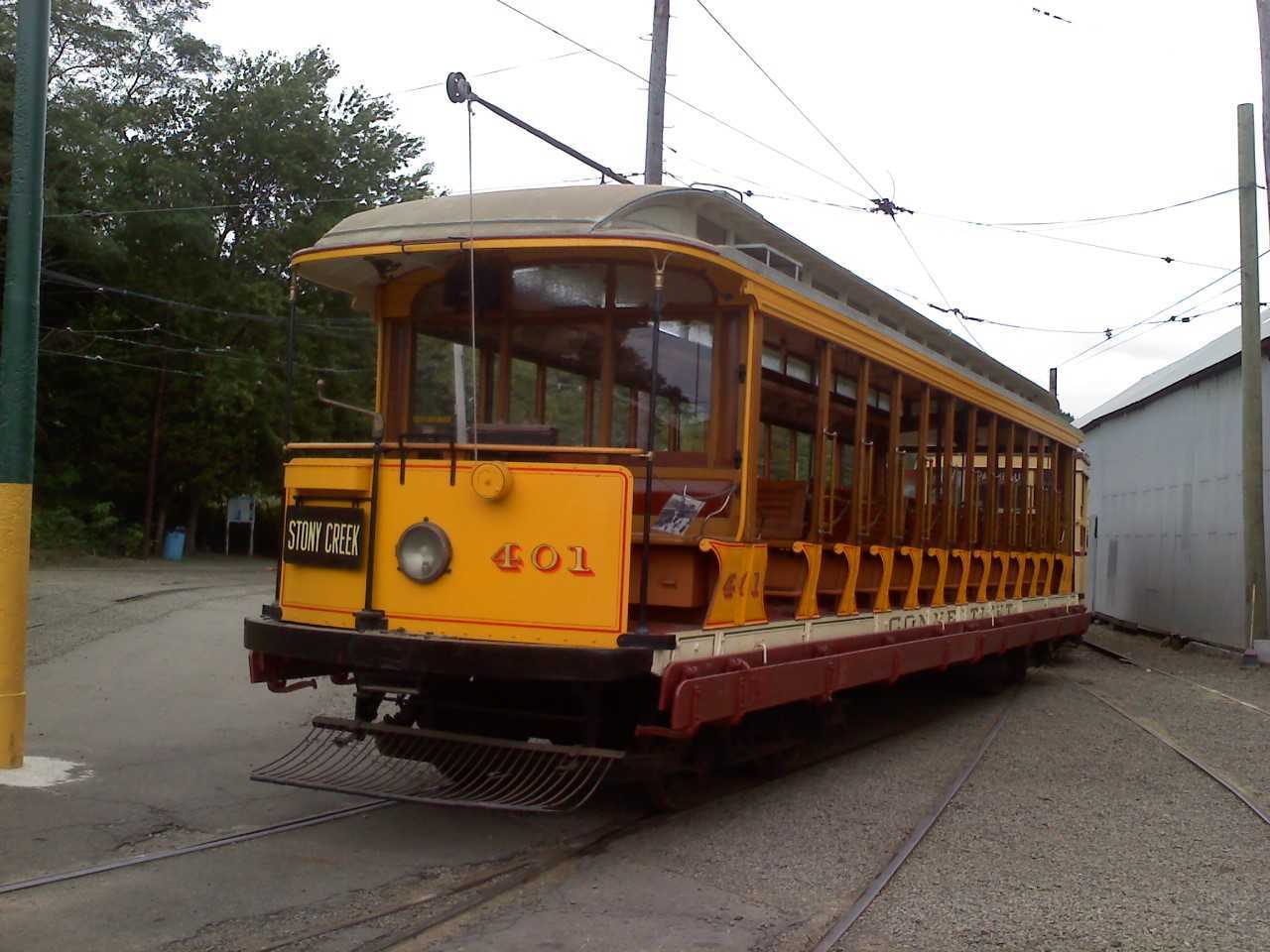

Car 401 during switching at Branford Branford Electric Railway Association photo: https://shorelinetrolley.org/collection/401/ |
 |

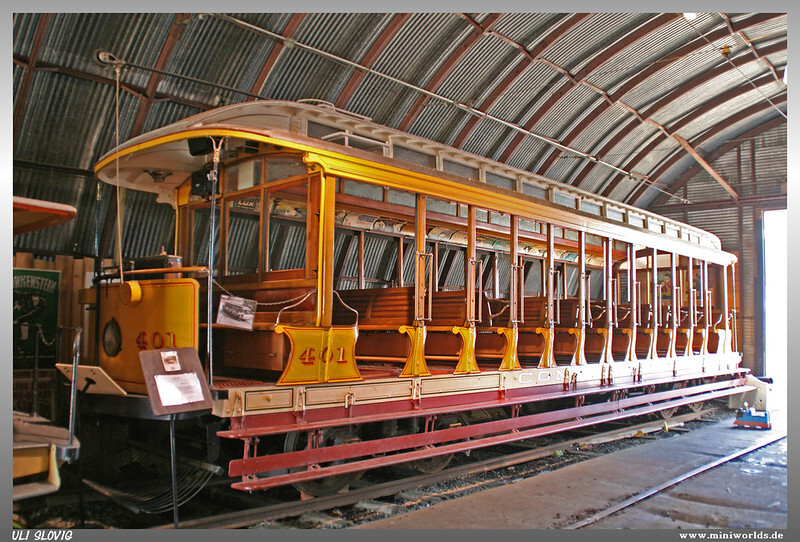

Car 401 on display at Branford in 2021 Flickr photo: https://www.flickr.com/photos/130975381@N03/51365489252/ |
