Facts and Figures
| Current Number | 2392 |
|---|---|
| Railway Represented | Brooklyn-Manhattan Transit |
| Builder | American Car & Foundry |
| Built In | 1914 |
| Builder's order id | 7986 |
| Currently in (State) | New York |
| --(Locality) | New York |
| Totally out of svc date | 1989 |
| (Initial retirement date) | 1965 |
| Car Type | rapid transit car |
| -subtype | subway car |
| -designation | Type A/B |
| Status | operated occasionally |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | DR |
| Ended | DE |
| Length | 67'6" |
| Width | 9'8" |
| Height | 12'1" |
| Weight | 95000 |
| #Seats | 78 |
| #Wheels/Conf. | 8 |
| Total HP | 320 |
| Trucks | A55 Arch Bar |
| Brakes | AMUE (ME23) |
| Compressor | WABCO D3F |
| Control | WH ABF (27B2) |
| Motors | GE 248A (2) |
| Voltage (if not 600DC) |
 |

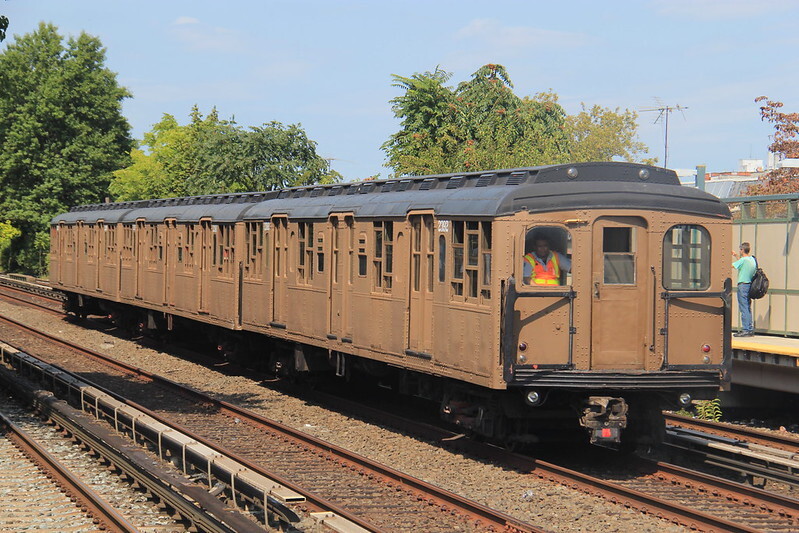

Car 2392 in operation in New York in 2022 Flickr photo: https://www.flickr.com/photos/47904859@N08/52366510768/ |
 |

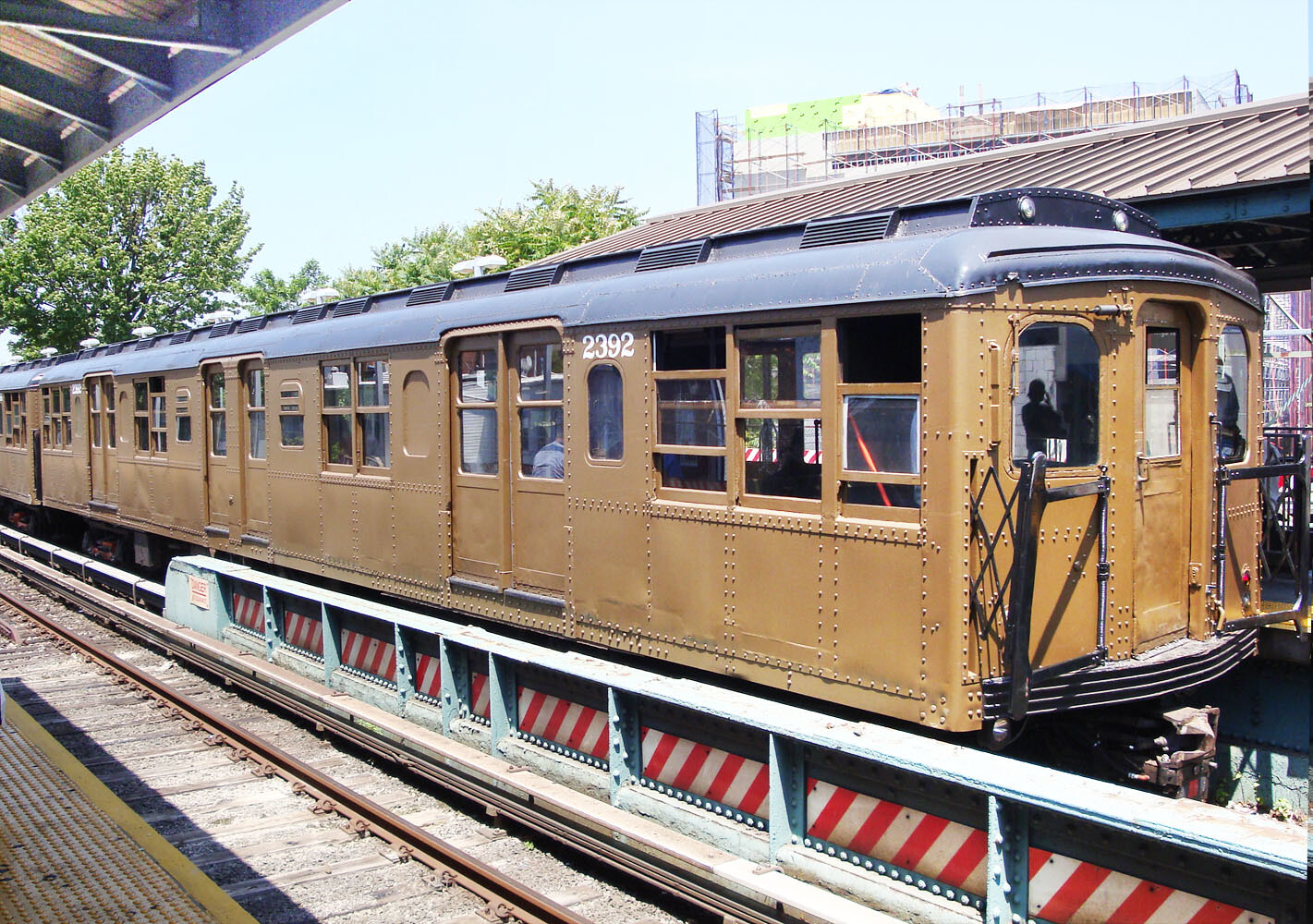

Car 2392 in operation in New York in 2017 Flickr photo: https://www.flickr.com/photos/145673041@N07/35289391812/ |
