Facts and Figures
| Current Number | 1602A |
|---|---|
| Railway Represented | Brooklyn-Manhattan Transit |
| Builder | Jewett Car Company |
| Built In | 1907 |
| Builder's order id | |
| Currently in (State) | New York |
| --(Locality) | Kingston |
| Totally out of svc date | 1980 |
| (Initial retirement date) | 1969 |
| Car Type | rapid transit car |
| -subtype | BMT "Q" car |
| -designation | Type Q |
| Status | stored inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel/wood |
| Roof type | RR |
| Ended | DE |
| Length | 48'11" |
| Width | 8'8" |
| Height | 12'0" |
| Weight | 70600 |
| #Seats | 50 |
| #Wheels/Conf. | 8 |
| Total HP | 240 |
| Trucks | McGuire Hedley Special |
| Brakes | AML (M19A) |
| Compressor | WABCO D2F |
| Control | WH AB (8) |
| Motors | GE 259 (2) |
| Voltage (if not 600DC) |
 |

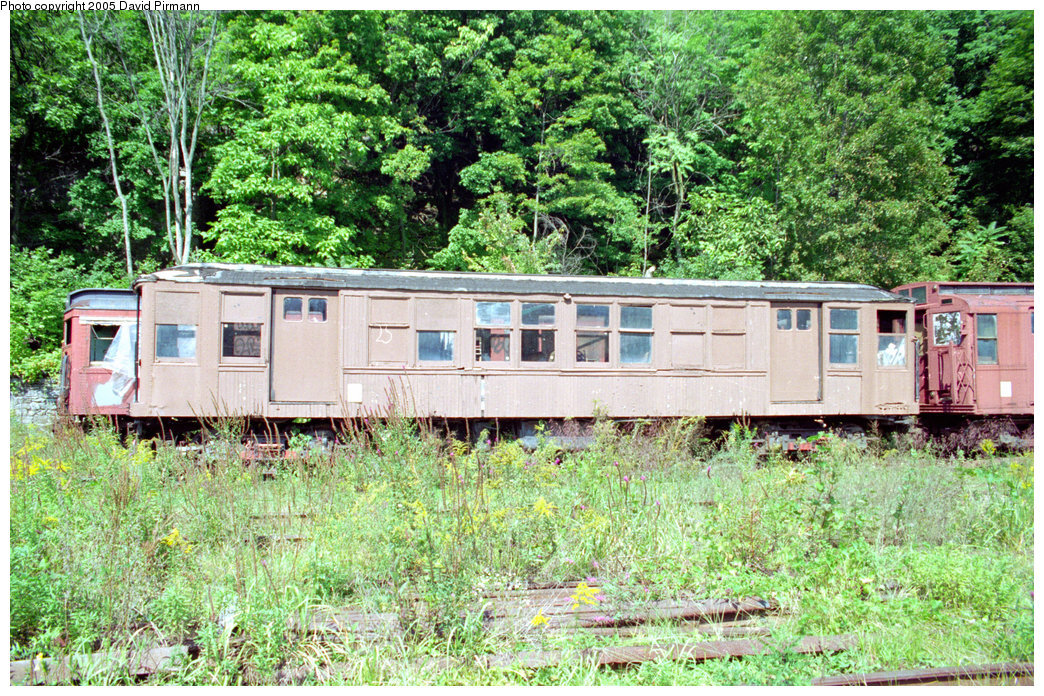

Car 1602A in storage at TMNY in 1996 NYCsubway.org photo: https://www.nycsubway.org/perl/show?6868 |
 |

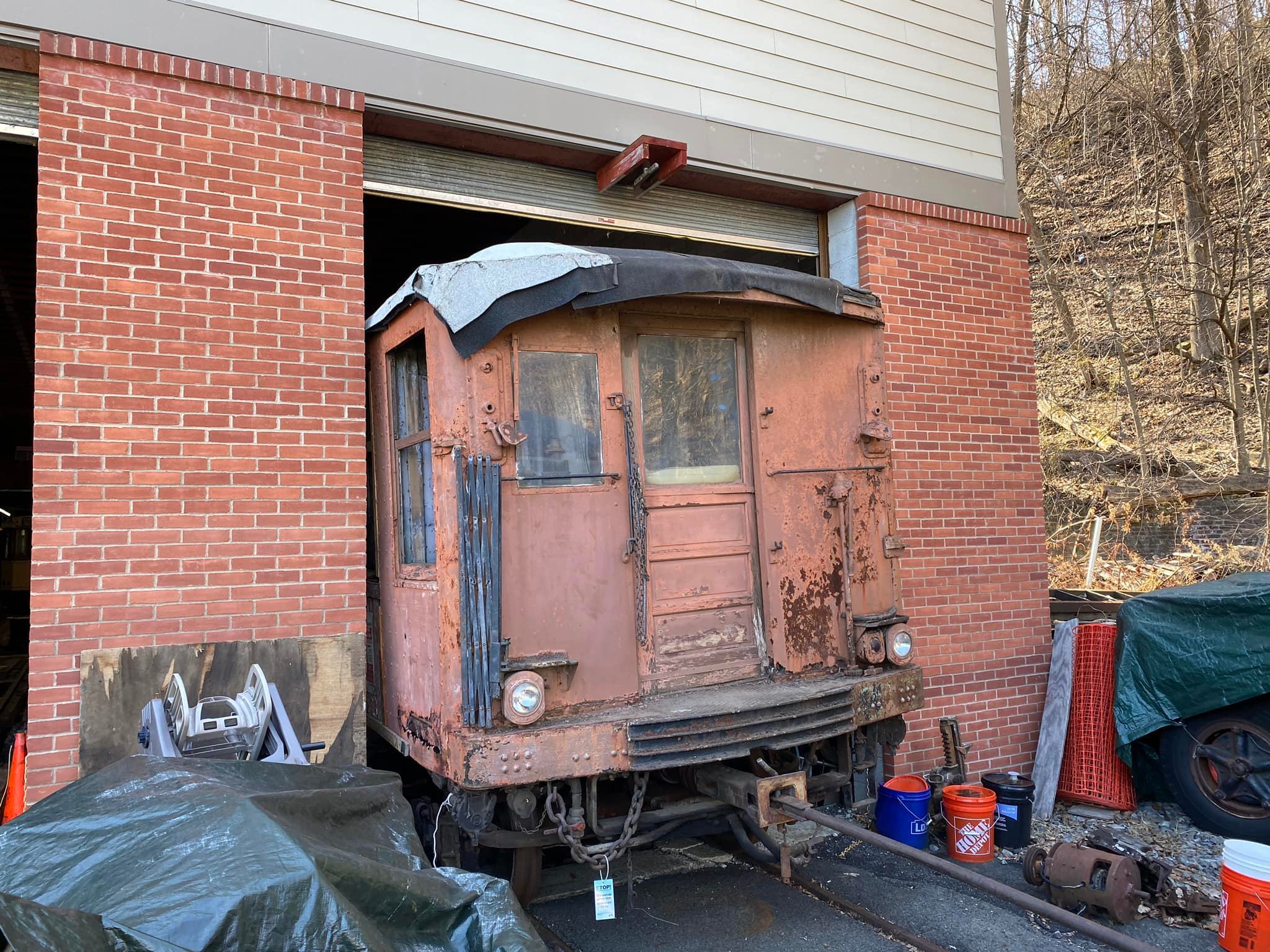

Car 1602A during switching at TMNY in 2022 photo: https://www.facebook.com/photo/?fbid=10159438810179230&set=pcb.10159438809139230 |
