Facts and Figures
| Current Number | 1440 |
|---|---|
| Railway Represented | Independent Subway System |
| Builder | American Car & Foundry |
| Built In | 1936 |
| Builder's order id | 1691 |
| Currently in (State) | Maine |
| --(Locality) | Kennebunkport |
| Totally out of svc date | 1990 |
| (Initial retirement date) | |
| Car Type | rapid transit car |
| -subtype | IND type subway car |
| -designation | Type R7 |
| Status | stored operable |
| More info | http://trolleymuseum.org/collection/vehicle/01440RNY.php |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | DR |
| Ended | DE |
| Length | 60'2" |
| Width | 9'10" |
| Height | 12'2" |
| Weight | 84556 |
| #Seats | 58 |
| #Wheels/Conf. | 8 |
| Total HP | 380 |
| Trucks | ACF 75 Arch Bar |
| Brakes | AMUE (ME23) |
| Compressor | WABCO D3F |
| Control | WH ABF (XM29E) |
| Motors | WH 570D5 (2) |
| Voltage (if not 600DC) |
 |

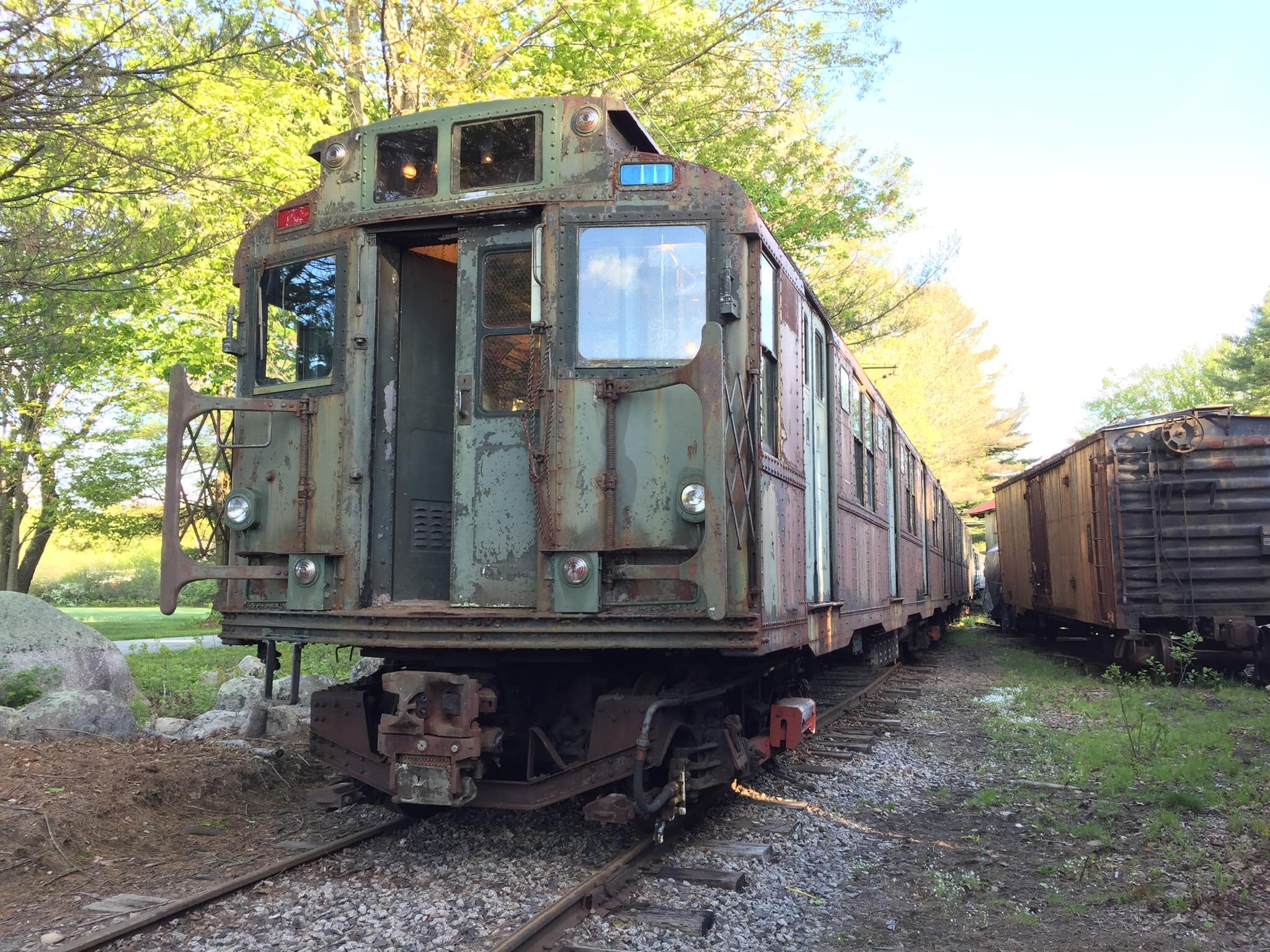

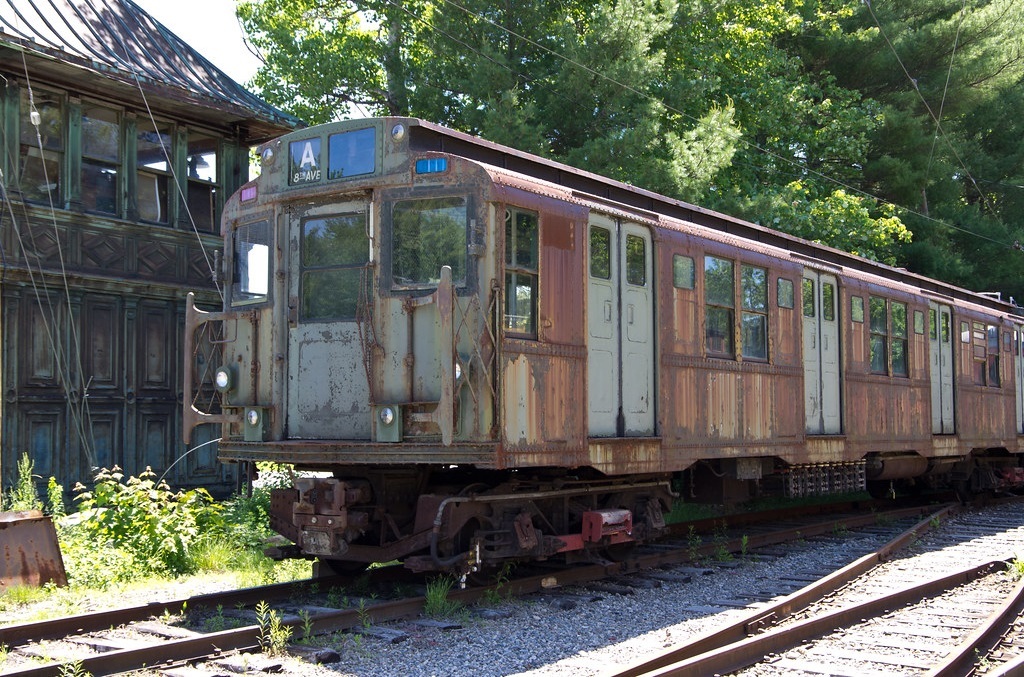

Car 1440 at Seashore in 2014 Flickr photo: https://www.flickr.com/photos/jfciesla/14512279885/ |
 |
Car 1440 in operation at Seashore photo: https://www.facebook.com/photo?fbid=100378981847110&set=pcb.100379731847035 |
