Facts and Figures
| Current Number | 1349 |
|---|---|
| Railway Represented | Brooklyn-Manhattan Transit |
| Builder | Cincinnati Car Company |
| Built In | 1905 |
| Builder's order id | 330 |
| Currently in (State) | Connecticut |
| --(Locality) | East Haven |
| Totally out of svc date | 1962 |
| (Initial retirement date) | |
| Car Type | rapid transit car |
| -subtype | open platform semi-convertible |
| -designation | Type BU |
| Status | operated occasionally |
| More info | http://www.bera.org/cgi-bin/viewcar.pl?car=1349 |
| Gauge | 4'8.5" |
| Construction | steel/wood |
| Roof type | RR |
| Ended | DE |
| Length | 49'3" |
| Width | |
| Height | |
| Weight | 73230 |
| #Seats | 60 |
| #Wheels/Conf. | 8 |
| Total HP | |
| Trucks | Alco Z380/Peckham 40 |
| Brakes | AML (M19A) |
| Compressor | WABCO D2EG |
| Control | WH AB Turret (8) |
| Motors | WH 300 (2) |
| Voltage (if not 600DC) |
 |

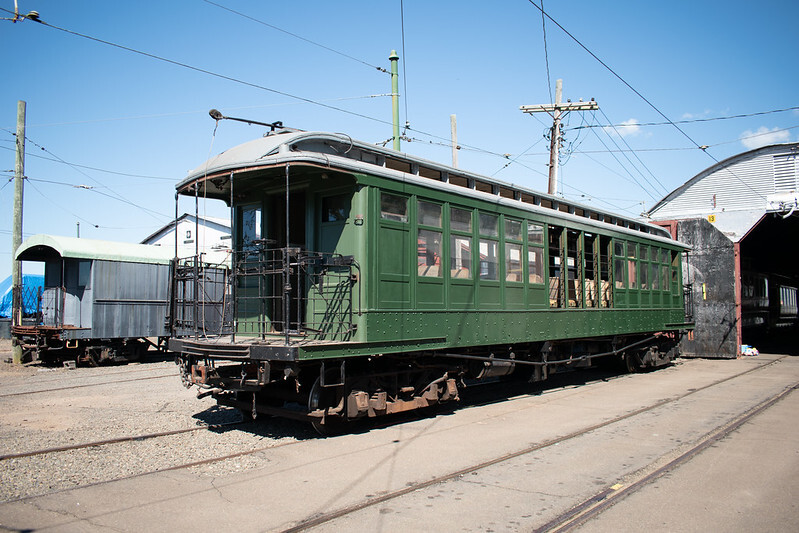

Car 1349 at Branford in 2023 Flickr photo: https://www.flickr.com/photos/194222166@N02/52884705839/ |
 |

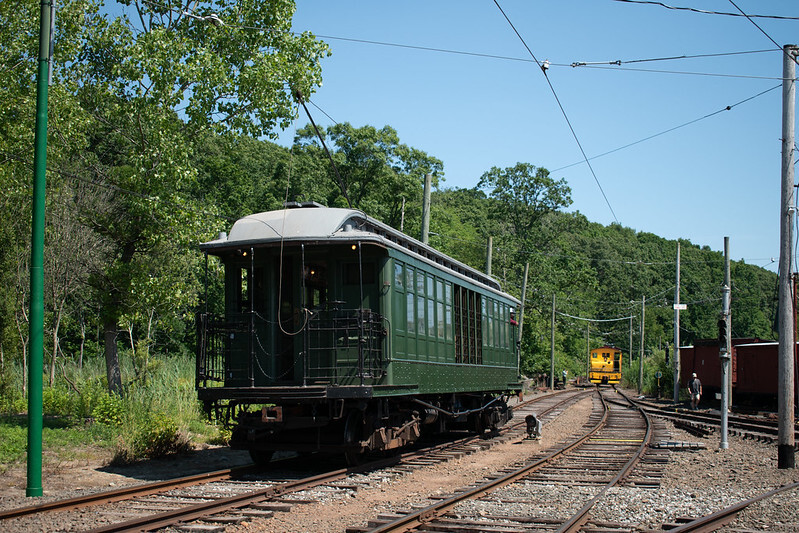

Car 1349 in operation at Branford in 2022 Flickr photo: https://www.flickr.com/photos/194222166@N02/52632127214/ |
