Facts and Figures
| Current Number | 109 |
|---|---|
| Railway Represented | Greater Cleveland Regional Transit Authority |
| Builder | St. Louis Car Company |
| Built In | 1955 |
| Builder's order id | 1775 |
| Currently in (State) | Ohio |
| --(Locality) | Chippewa Lake |
| Totally out of svc date | n/a |
| (Initial retirement date) | 1990 |
| Car Type | rapid transit car |
| -subtype | PCC rapid transit car |
| -designation | |
| Status | operated occasionally |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 48'6" |
| Width | 10'4" |
| Height | 11'9" |
| Weight | 56620 |
| #Seats | 52 |
| #Wheels/Conf. | 8 |
| Total HP | 220 |
| Trucks | GSC |
| Brakes | |
| Compressor | 3YC |
| Control | WH XDA1C |
| Motors | WH 1432H (4) |
| Voltage (if not 600DC) |
 |

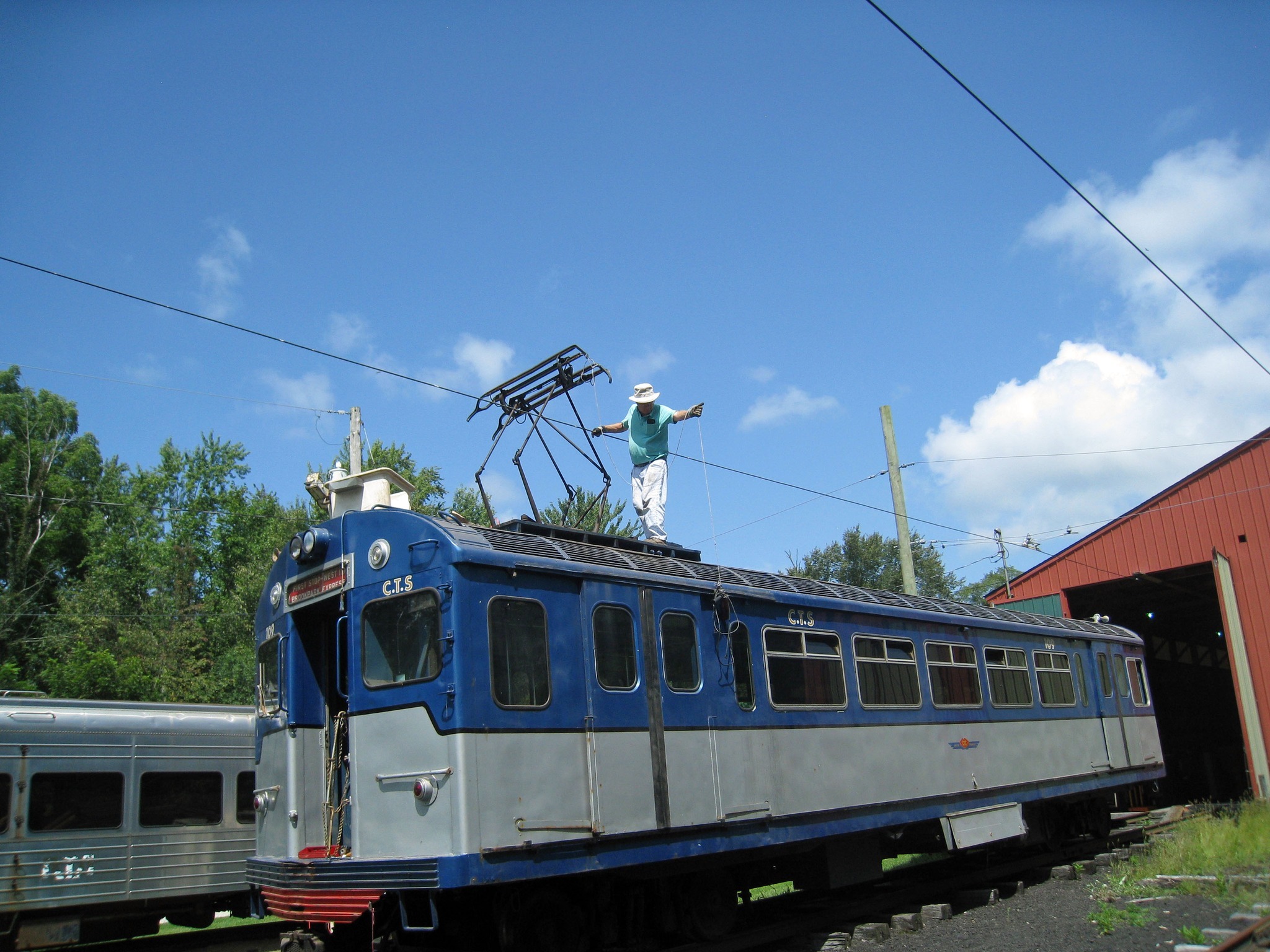

Car 109 in operation at NORM in 2023 Preserved Traction Blog photo: https://pnaerc.blogspot.com/2023/03/cleveland-transit-system-109-runs.html |
 |

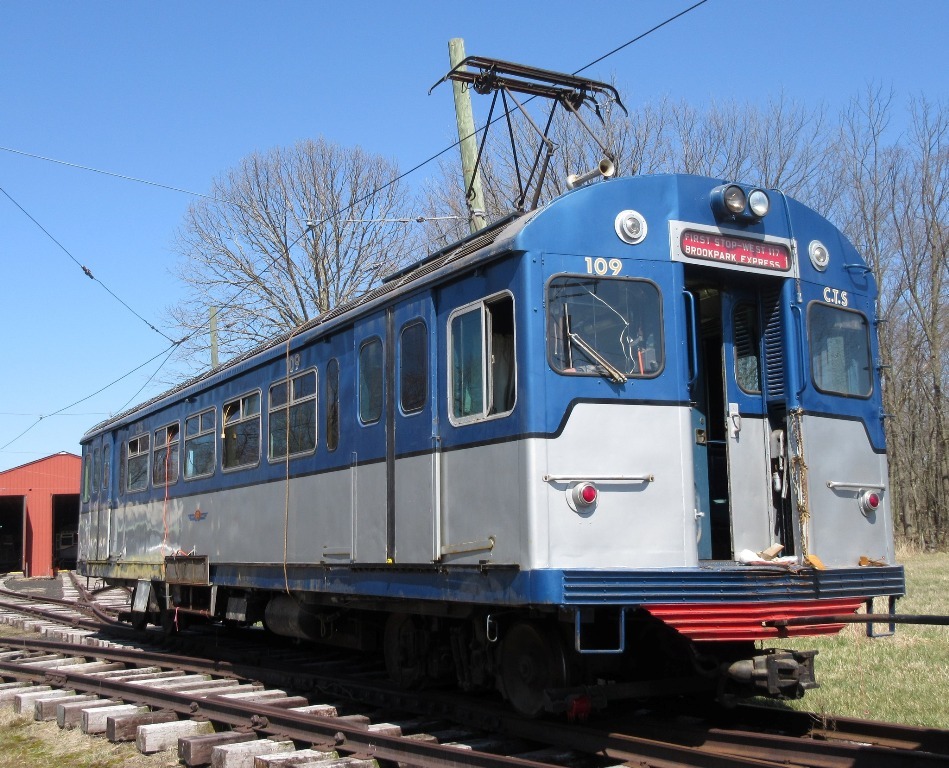

Car 109 at NORM in 2023 photo: https://www.facebook.com/northernohiorailwaymuseum/posts/pfbid0eJYuZDevUMzTt1jpP3559B9GpuMWsbWUorSsi1V6ZAUFVNuaf7SWrDQSoMJZp4w1l |
