Facts and Figures
| Current Number | 4876 |
|---|---|
| Railway Represented | Pennsylvania Railroad |
| Builder | Pennsylvania Railroad |
| Built In | 1939 |
| Builder's order id | 4345 |
| Currently in (State) | Maryland |
| --(Locality) | Baltimore |
| Totally out of svc date | |
| (Initial retirement date) | |
| Car Type | locomotive |
| -subtype | mainline dual-purpose |
| -designation | Type GG-1 |
| Status | stored inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 79'6" |
| Width | 10'6" |
| Height | 15'0" |
| Weight | 468400 |
| #Seats | n/a |
| #Wheels/Conf. | 20 |
| Total HP | 4620 |
| Trucks | GSC |
| Brakes | 24RL |
| Compressor | WABCO C150 |
| Control | WH XM288B |
| Motors | GE A621/A622 (12) |
| Voltage (if not 600DC) | 11000vAC |
 |

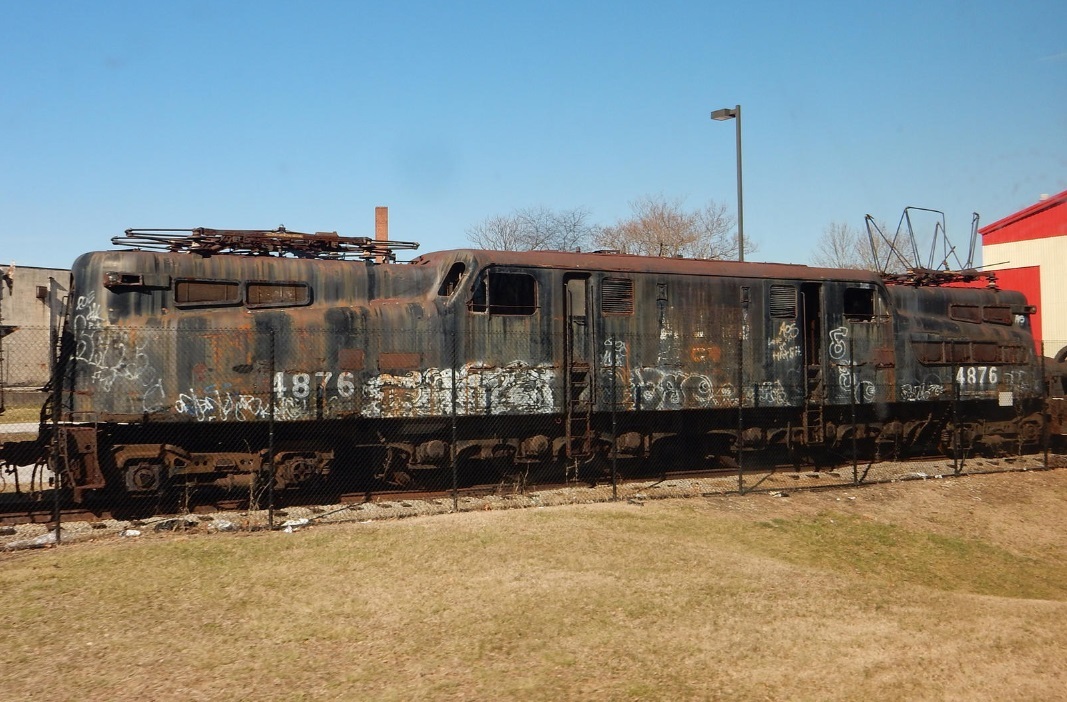

Locomotive 4876 in storage at the B&ORRM in 2017 Deviant Art photo: https://www.deviantart.com/rlkitterman/art/PRR-GG1-No-4876-at-Restoration-Facility-690868231 |
 |

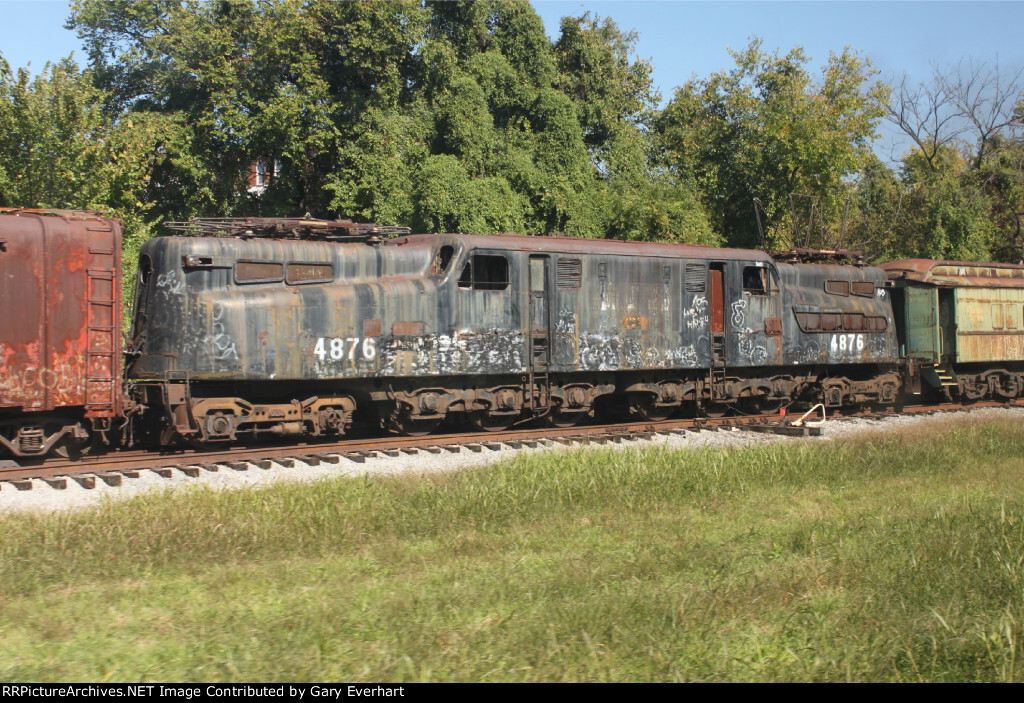

Locomotive 4876 in storage at the B&ORRM in 2012 Railroad Picture Archives photo: http://www.rrpicturearchives.net/showPicture.aspx?id=3252658 |
