Facts and Figures
| Current Number | 756 |
|---|---|
| Railway Represented | Chicago North Shore & Milwaukee |
| Builder | Standard Steel |
| Built In | 1930 |
| Builder's order id | P3460 |
| Currently in (State) | Illinois |
| --(Locality) | South Elgin |
| Totally out of svc date | 1963 |
| (Initial retirement date) | |
| Car Type | interurban |
| -subtype | coach |
| -designation | |
| Status | stored inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 55'3" |
| Width | 8'8" |
| Height | 12'7" |
| Weight | 103800 |
| #Seats | 52 |
| #Wheels/Conf. | 8 |
| Total HP | 560 |
| Trucks | Baldwin 84-30AA |
| Brakes | AMU (M23) |
| Compressor | WABCO DH25 |
| Control | WH HLF-28A3 |
| Motors | WH 557R5 (4) |
| Voltage (if not 600DC) |
 |

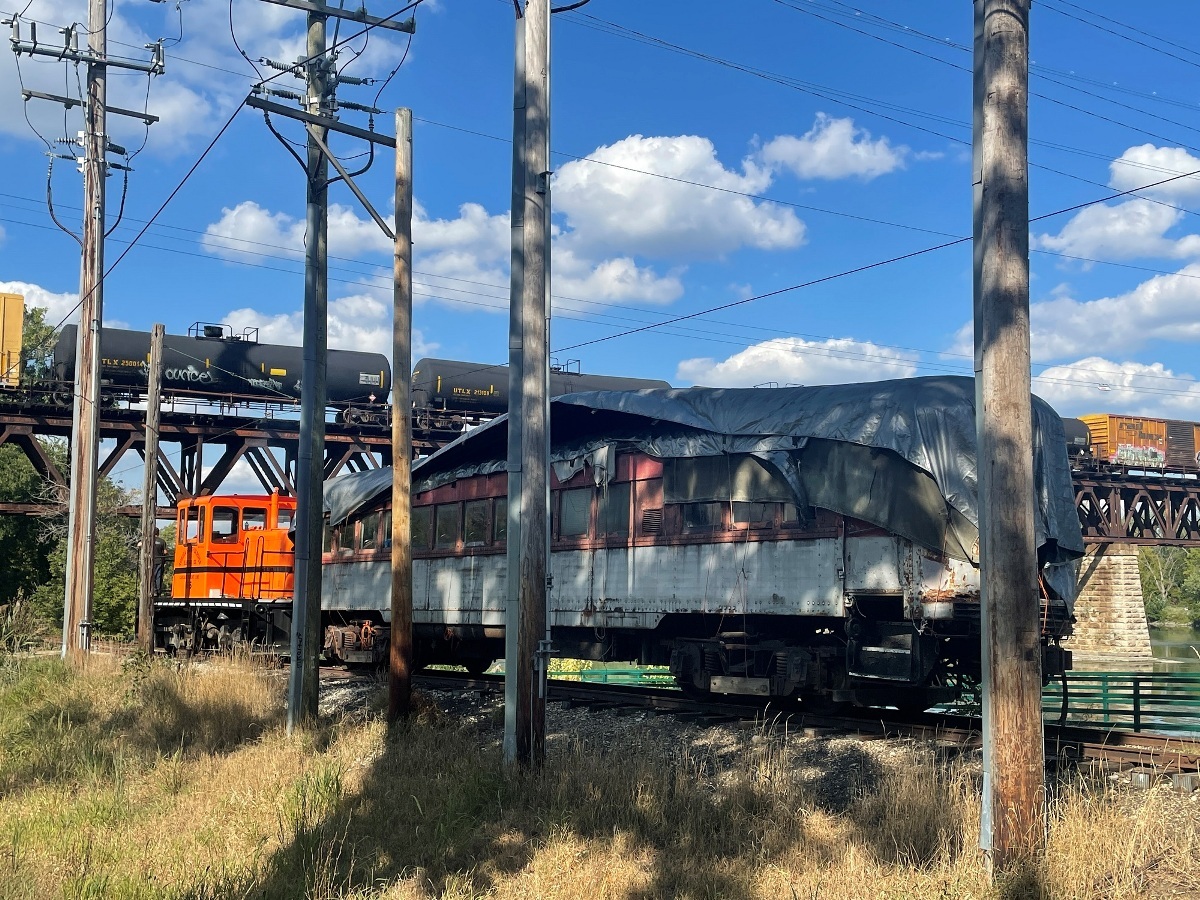

Car 756 at FRTM in 2022 Fox River Trolley Museum photo: https://www.foxtrolley.org/in-the-news/12930857 |
 |

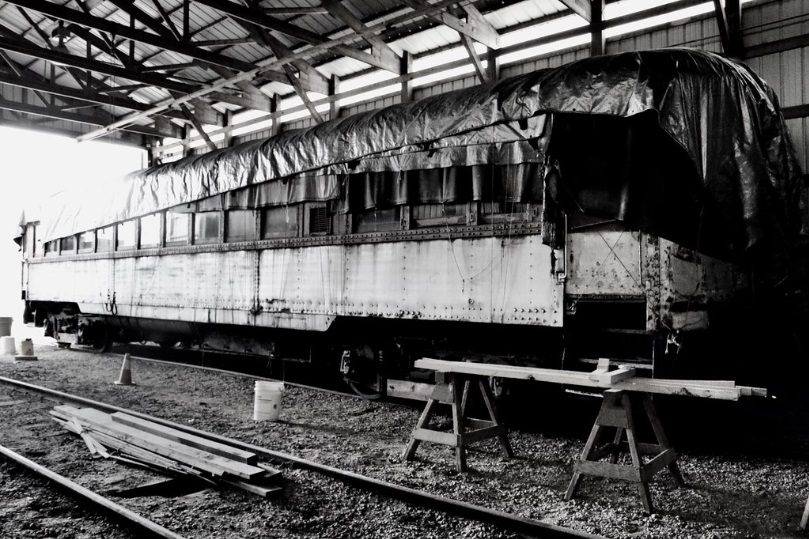

Car 756 in storage at FRTM in 2017 Flickr photo: https://www.flickr.com/photos/photos_by_laurence/36563242454/ |
