Facts and Figures
| Current Number | W4 |
|---|---|
| Railway Represented | Toronto Transportation Commission |
| Builder | Toronto Railway |
| Built In | 1904 |
| Builder's order id | |
| Currently in (State) | Ontario |
| --(Locality) | Rockwood |
| Totally out of svc date | 1974 |
| (Initial retirement date) | |
| Car Type | flat motor |
| -subtype | cab-on-flat locomotive |
| -designation | |
| Status | displayed inoperable |
| More info | http://www.hcry.org/collection_1904_W-4.html |
| Gauge | 4'10.875" |
| Construction | wood |
| Roof type | AR |
| Ended | SE |
| Length | 33'9" |
| Width | 8'3" |
| Height | 11'11" |
| Weight | 35200 |
| #Seats | n/a |
| #Wheels/Conf. | 8 |
| Total HP | 160 |
| Trucks | Curtis D2 |
| Brakes | SME (M20A) |
| Compressor | WABCO DH16 |
| Control | K-35 |
| Motors | GE 80 (4) |
| Voltage (if not 600DC) |
 |

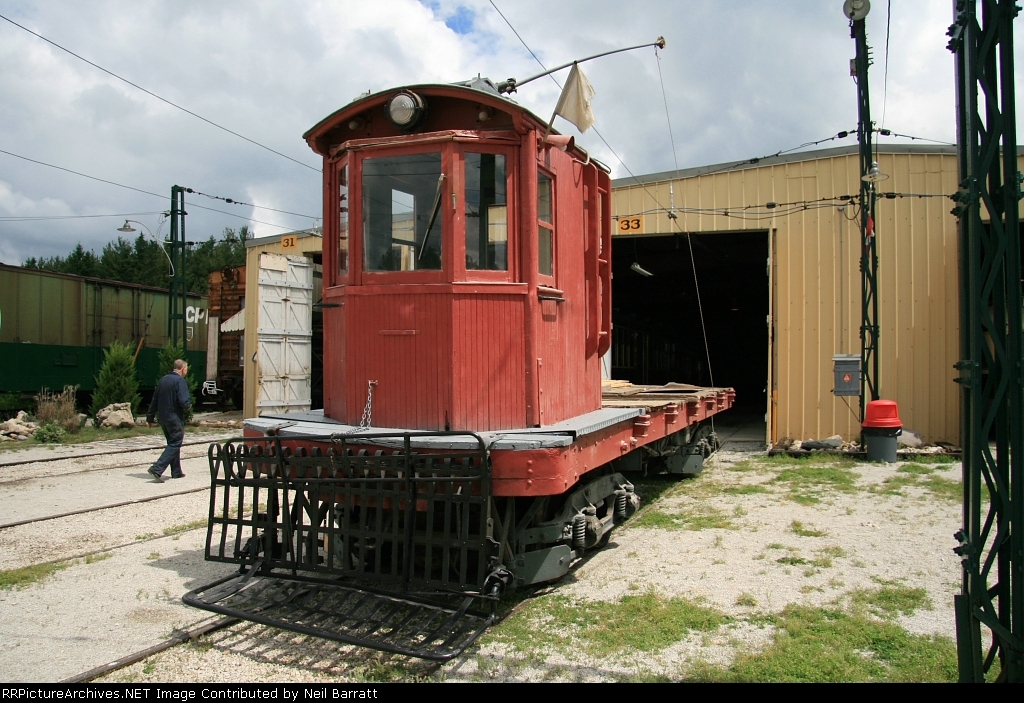

Car W-4 during switching at HCRR Railroad Picture Archives photo: http://www.rrpicturearchives.net/showPicture.aspx?id=1884532 |
 |

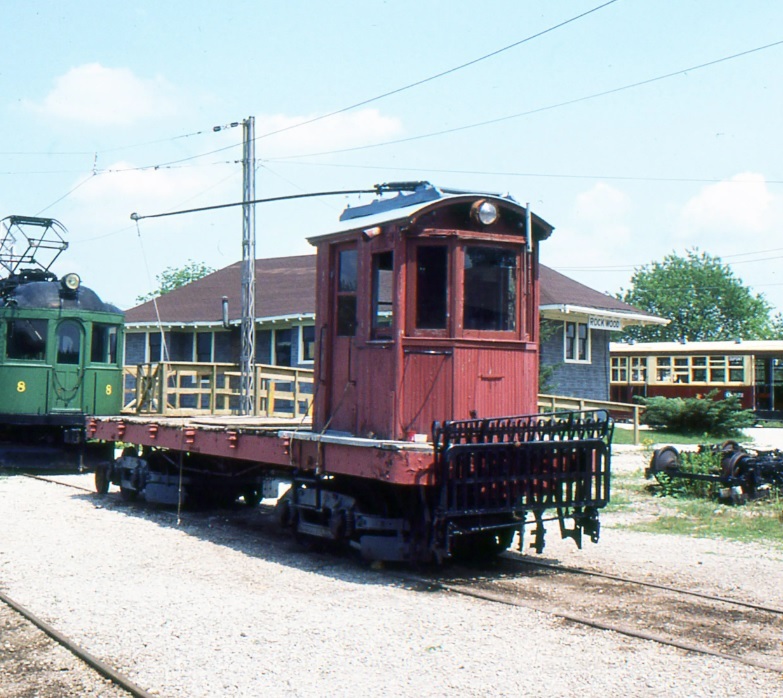

Car W-4 at HCRY in 1984 Halton County Radial Railway photo: https://hcry.org/portfolio-items/toronto-railway-company-w-4/ |
