Facts and Figures
| Current Number | 314 |
|---|---|
| Railway Represented | Pacific Electric |
| Builder | St. Louis Car Company |
| Built In | 1930 |
| Builder's order id | 1541 |
| Currently in (State) | California |
| --(Locality) | Perris |
| Totally out of svc date | 1959 |
| (Initial retirement date) | |
| Car Type | interurban |
| -subtype | "Blimp" coach |
| -designation | |
| Status | undergoing restoration |
| More info | http://www.oerm.org/pages/pe314.html |
| Gauge | 4'8.5" |
| Construction | aluminum/steel |
| Roof type | AR |
| Ended | DE |
| Length | 72'11" |
| Width | 10'4" |
| Height | 13'9" |
| Weight | 110200 |
| #Seats | 80 |
| #Wheels/Conf. | 8 |
| Total HP | 560 |
| Trucks | St Louis 4EMTC1 |
| Brakes | AMU (M24D) |
| Compressor | D3-K |
| Control | WH XM-28 |
| Motors | WH 557E7 (4) |
| Voltage (if not 600DC) |
 |

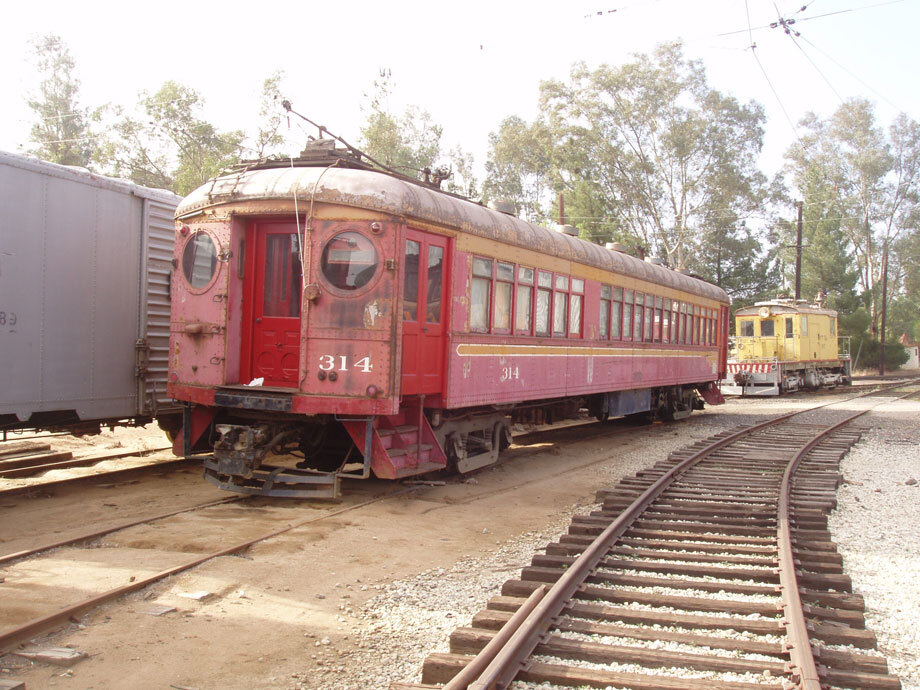

Car 314 on display at SCRM Odessa Trolley photo: http://odessatrolley.com/OtherCities/Mus/Transit/Perris/LA-PE314.jpg |
 |

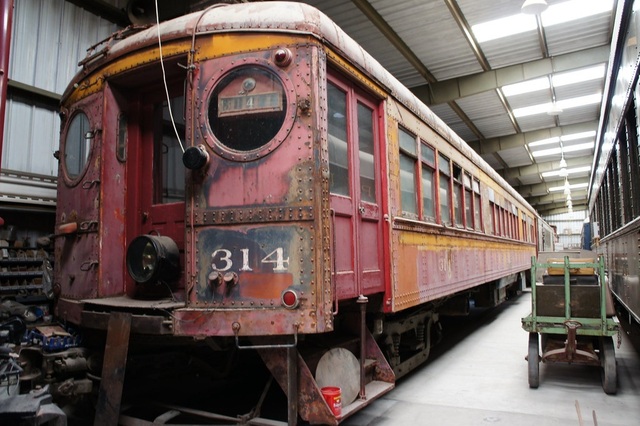

Car 314 in storage at SCRM in 2011 Flickr photo: https://www.flickr.com/photos/sanchezflyeroc/5966471332/ |
