Facts and Figures
| Current Number | 2601 |
|---|---|
| Railway Represented | Los Angeles Transit Lines |
| Builder | St. Louis Car Company |
| Built In | 1930 |
| Builder's order id | 1533 |
| Currently in (State) | California |
| --(Locality) | Perris |
| Totally out of svc date | 1955 |
| (Initial retirement date) | 1950 |
| Car Type | streetcar |
| -subtype | experimental Peter Witt |
| -designation | Class M-1 |
| Status | undergoing restoration |
| More info | |
| Gauge | 3'6" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 49'0" |
| Width | 8'4" |
| Height | 10'10" |
| Weight | 44580 |
| #Seats | 55 |
| #Wheels/Conf. | 8 |
| Total HP | |
| Trucks | St Louis EIBN66 |
| Brakes | SME (M18A) |
| Compressor | DH-16 |
| Control | WH VA (29A6) |
| Motors | WH 516L (4) |
| Voltage (if not 600DC) |
 |

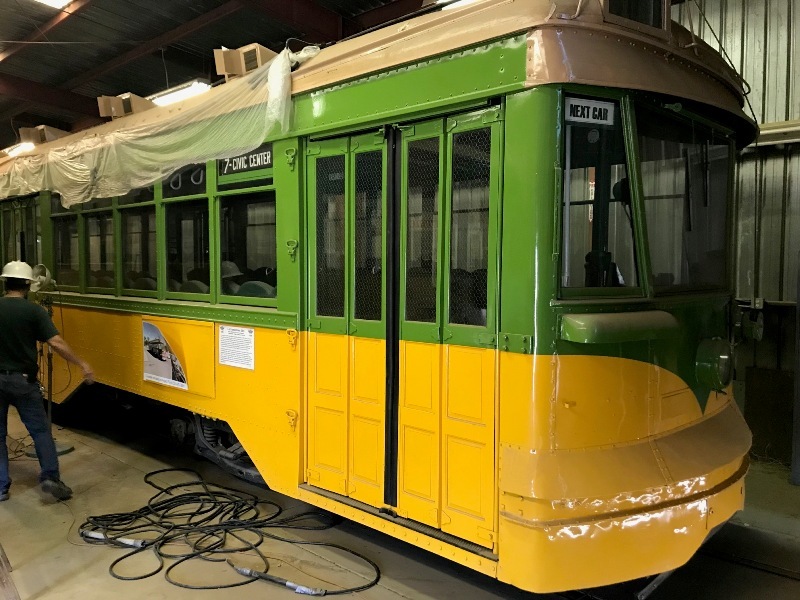

Car 2601 under restoration at SCRM in 2018 Hicks Car Works photo: https://hickscarworks.blogspot.com/2018/02/visit-to-orange-empire-part-i.html |
 |

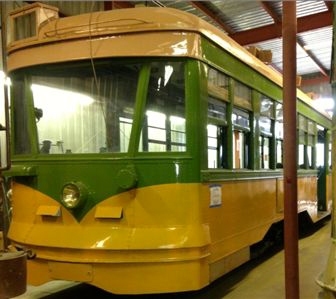

Car 2601 under restoration at SCRM PacificElectric.org photo: https://www.pacificelectric.org/los-angeles-railway/5-line/lary-cars-2601-1450-a-chance-meeting-20-years-before-the-fact/ |
