Facts and Figures
| Current Number | 19 |
|---|---|
| Railway Represented | Chicago South Shore & South Bend |
| Builder | Pullman |
| Built In | 1927 |
| Builder's order id | 6073 |
| Currently in (State) | Illinois |
| --(Locality) | Union |
| Totally out of svc date | 1984 |
| (Initial retirement date) | 1983 |
| Car Type | interurban |
| -subtype | coach |
| -designation | |
| Status | stored inoperable |
| More info | http://www.irm.org/player/csssb19 |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 78'6" |
| Width | 10'1" |
| Height | 13'5" |
| Weight | 147000 |
| #Seats | 80 |
| #Wheels/Conf. | 8 |
| Total HP | 840 |
| Trucks | Baldwin 84-60AA |
| Brakes | AMU (M23) |
| Compressor | WABCO D3F |
| Control | WH HBF (XM160) |
| Motors | WH 567C11 (4) |
| Voltage (if not 600DC) | 1500vDC |
 |
Car 17 at IRM in 2005 Illinois Railway Museum photo: https://www.irm.org/gallery/CSSSB19/aaa |
 |

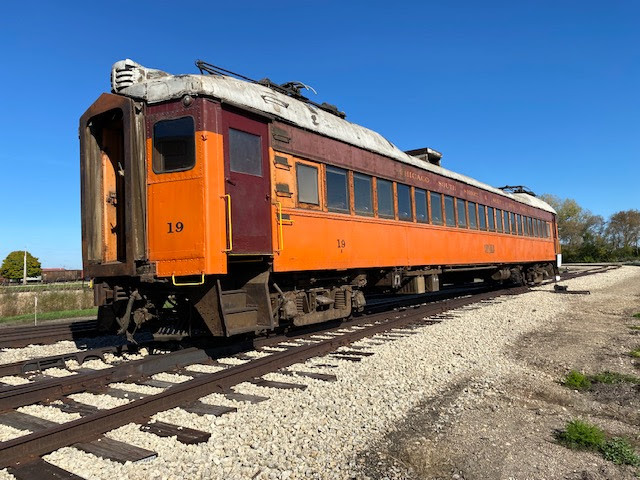

Car 19 during switching at IRM in 2021 Hicks Car Works photo: https://hickscarworks.blogspot.com/2021/10/switch-move-saturday.html |
