Facts and Figures
| Current Number | 1559 |
|---|---|
| Railway Represented | Los Angeles Railway Company |
| Builder | Los Angeles Railway Company |
| Built In | 1925 |
| Builder's order id | |
| Currently in (State) | California |
| --(Locality) | Perris |
| Totally out of svc date | 1955 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | California car |
| -designation | Class K-4 |
| Status | displayed inoperable |
| More info | http://www.oerm.org/pages/lary1559.html |
| Gauge | 3'6" |
| Construction | wood |
| Roof type | AR |
| Ended | DE |
| Length | 48'0" |
| Width | 9'1" |
| Height | 11'2" |
| Weight | 42700 |
| #Seats | 48 |
| #Wheels/Conf. | 8 |
| Total HP | 160 |
| Trucks | St Louis N69 / "T5B" |
| Brakes | SME (M18A) |
| Compressor | DH-16 |
| Control | WH HL (15B) |
| Motors | WH 514L (4) |
| Voltage (if not 600DC) |
 |

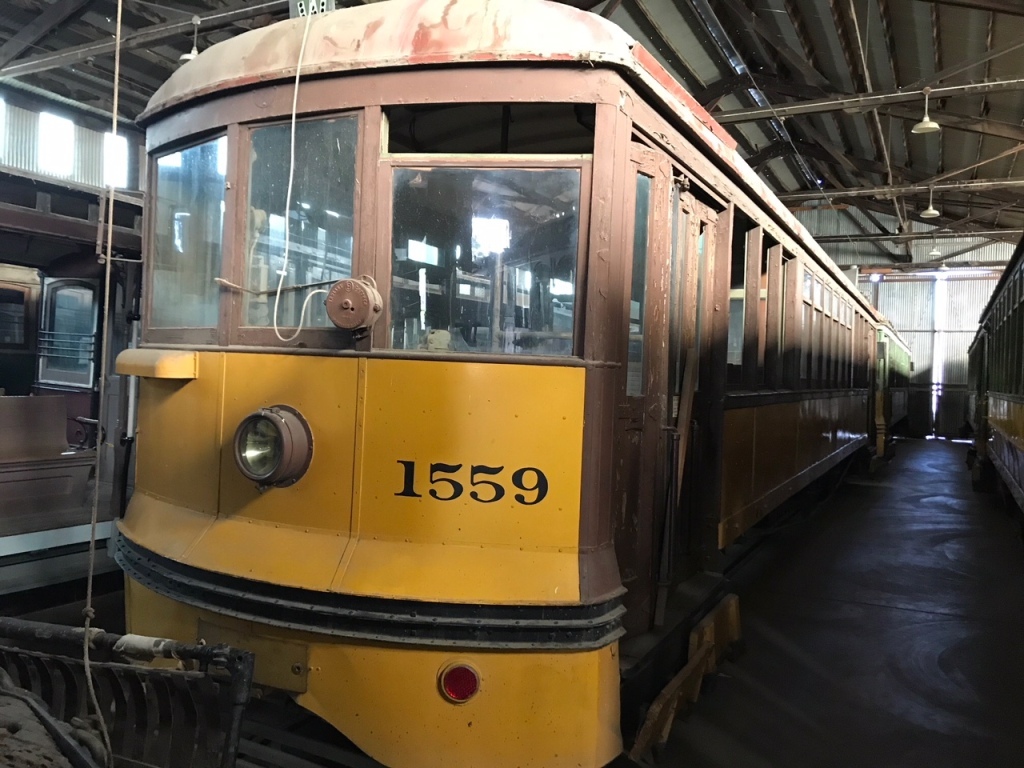

Car 1559 on display at SCRM in 2018 Hicks Car Works photo: https://hickscarworks.blogspot.com/2018/02/visit-to-orange-empire-part-ii.html |
 |

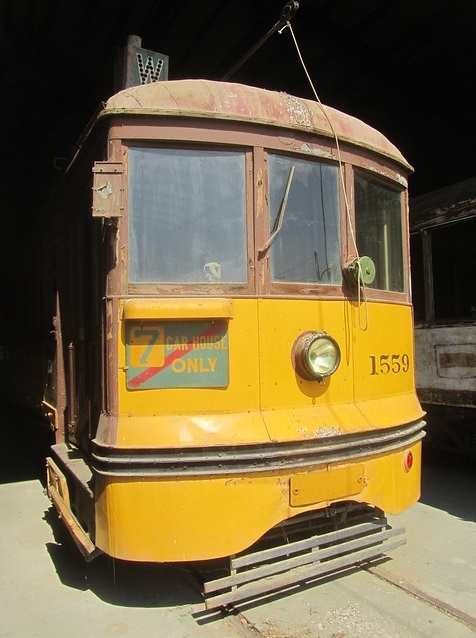

Car 1559 on display at SCRM in 2013 Flickr photo: https://www.flickr.com/photos/mr38/8989506802/ |
