Facts and Figures
| Current Number | 11 |
|---|---|
| Railway Represented | Chicago South Shore & South Bend |
| Builder | Pullman |
| Built In | 1926 |
| Builder's order id | 4937 |
| Currently in (State) | Michigan |
| --(Locality) | Mount Clemens |
| Totally out of svc date | 1984 |
| (Initial retirement date) | 1983 |
| Car Type | interurban |
| -subtype | coach |
| -designation | |
| Status | towed inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 77'6" |
| Width | 10'1" |
| Height | 13'5" |
| Weight | 147000 |
| #Seats | 80 |
| #Wheels/Conf. | 8 |
| Total HP | 840 |
| Trucks | Baldwin 84-60AA |
| Brakes | AMU (M23) |
| Compressor | WABCO D3F |
| Control | WH HBF (XM160) |
| Motors | WH 567C9 (4) |
| Voltage (if not 600DC) | 1500vDC |
 |

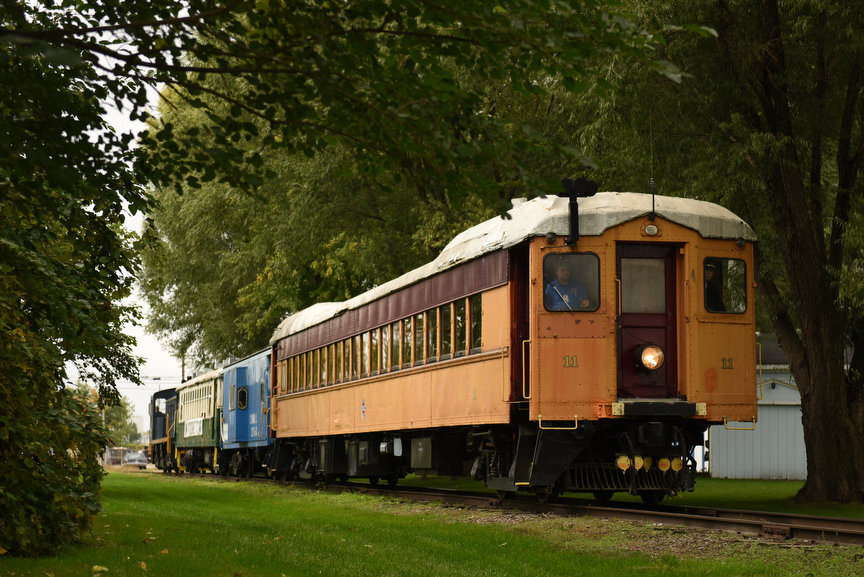

Car 11 in train operation at MTM circa 2016 Mlive.com photo: https://www.mlive.com/news/detroit/2016/10/michigan_transit_museum_keeps.html |
 |
Car 11 in train operation at MTM in 2021 Flickr photo: https://www.flickr.com/photos/142453835@N06/51601880119/ |
