Facts and Figures
| Current Number | D16 |
|---|---|
| Railway Represented | The Milwaukee Electric Railway & Transport Company |
| Builder | Milwaukee Electric Railway & Light |
| Built In | 1907 |
| Builder's order id | |
| Currently in (State) | Illinois |
| --(Locality) | Union |
| Totally out of svc date | ? |
| (Initial retirement date) | |
| Car Type | crane |
| -subtype | self-propelled derrick |
| -designation | |
| Status | stored inoperable |
| More info | http://www.irm.org/player/tmertd16 |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | SE |
| Length | 40'0" |
| Width | 8'7" |
| Height | 11'10" |
| Weight | 102000 |
| #Seats | n/a |
| #Wheels/Conf. | 8 |
| Total HP | |
| Trucks | TMER&L M100AB |
| Brakes | AMM (M24) |
| Compressor | National A4 |
| Control | GE M (C6A) |
| Motors | [GE 74 (4)] |
| Voltage (if not 600DC) |
 |

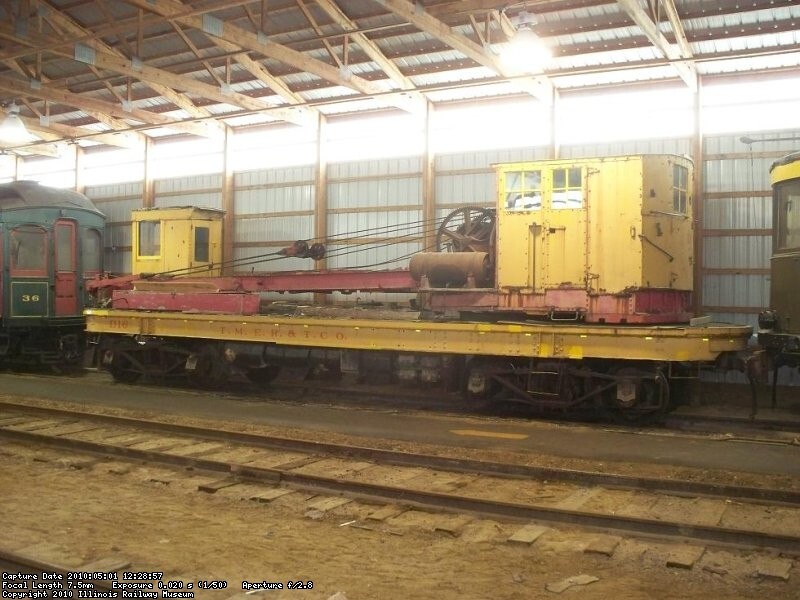

Car D16 on display at IRM in 2010 Illinois Railway Museum photo: https://www.irm.org/gallery/TMERLD16/aac |
 |

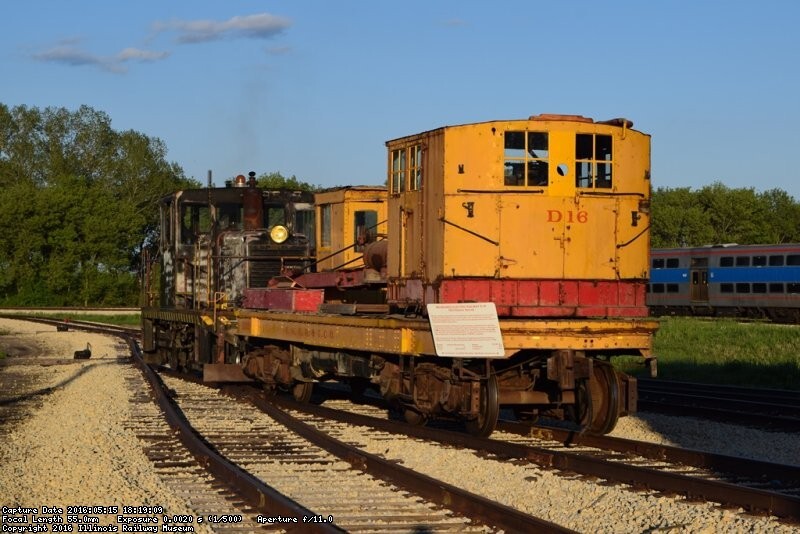

Car D16 during switching at IRM in 2016 Illinois Railway Museum photo: https://www.irm.org/gallery/TMERLD16/aad |
