Current Number | 665 |
---|---|
Railway Represented | Los Angeles Railway Company |
Builder | St. Louis Car Company |
Built In | 1911 |
Builder's order id | 870 |
Currently in (State) | California |
--(Locality) | Perris |
Totally out of svc date | 1948 |
(Initial retirement date) | |
Car Type | streetcar |
-subtype | California car |
-designation | Class B |
Status | undergoing restoration |
More info | http://www.oerm.org/pages/lary665.html |
Gauge | 3'6" |
Construction | wood |
Roof type | DR |
Ended | DE |
Length | 44'7" |
Width | 9'1" |
Height | 11'11" |
Weight | 41920 |
#Seats | 48 |
#Wheels/Conf. | 8 |
Total HP | 240 |
Trucks | T-9 |
Brakes | Straight Air |
Compressor | D1-BG |
Control | K-11 |
Motors | WH 306L (4) |
Voltage (if not 600DC) |

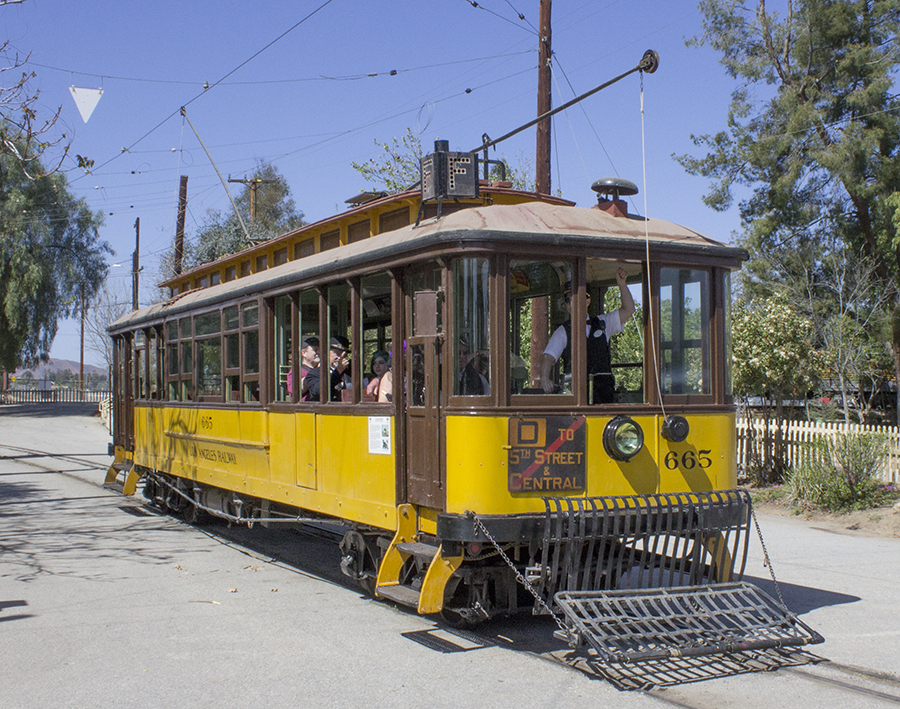

Car 665 in operation at SCRM in 2014 Mark Eades Enterprises photo: https://www.markeades.com/the-railroad-zone-disney-train-connections-in-the-desert/ |

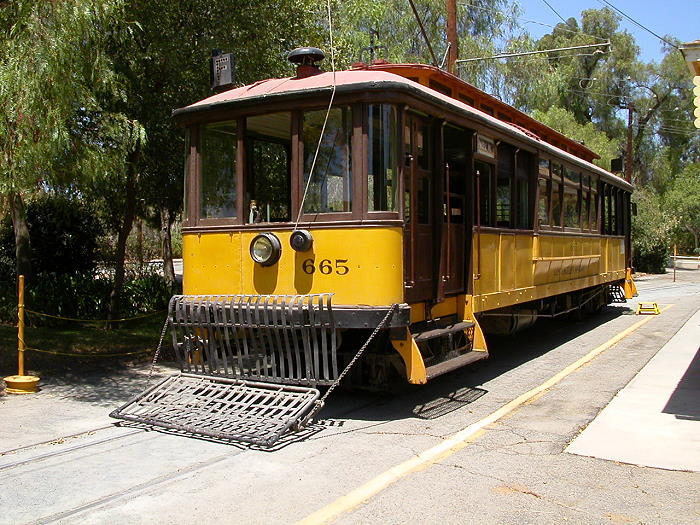

Car 665 in operation at SCRM in 2004 Wikipedia photo: https://en.wikipedia.org/wiki/Los_Angeles_Railway#/media/File:Oerm665.jpg |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
Los Angeles Railway Company (California, Los Angeles) | 665 | 1911 | 1945 | NO | NO |
Los Angeles Transit Lines (California, Los Angeles) | 665 | 1945 | 1948 | NO | NO |
Twentieth Century Fox (California, Hollywood) | 665 | 1948 | 1967 | YES | NO |
Southern California Railway Museum (California, Perris) | 665 | 1967 | present | YES | NO |
[No preview available] |
Video history of car 665 from 2013 YouTube video: https://www.youtube.com/watch?v=QrqT38LKN4A |
