Facts and Figures
| Current Number | 4034 |
|---|---|
| Railway Represented | Toronto Transportation Commission |
| Builder | Hawker-Siddeley Canada Limited |
| Built In | 1979 |
| Builder's order id | |
| Currently in (State) | Illinois |
| --(Locality) | Union |
| Totally out of svc date | 2019 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | closed |
| -designation | CLRV |
| Status | displayed inoperable |
| More info | http://www.irm.org/player/ttc4034 |
| Gauge | 4'10.875" |
| Construction | steel |
| Roof type | AR |
| Ended | SE |
| Length | 49'11" |
| Width | 8'6" |
| Height | 11'11" |
| Weight | 50012 |
| #Seats | 42 |
| #Wheels/Conf. | 8 |
| Total HP | |
| Trucks | CLRV-4-1 |
| Brakes | Air-electric |
| Compressor | Knorr VV64/100-3 |
| Control | Garrett Chopper |
| Motors | Garrett 625184 (2) |
| Voltage (if not 600DC) |
 |

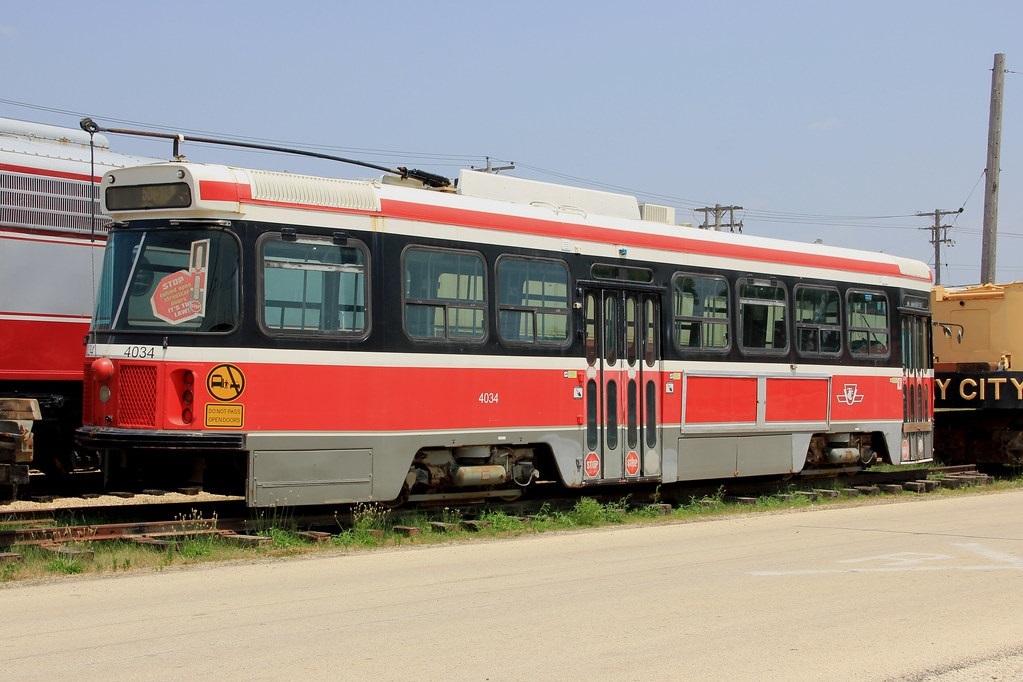

Car 4034 on display at IRM in 2023 Flickr photo: https://www.flickr.com/photos/14581588@N05/53280043593/ |
 |

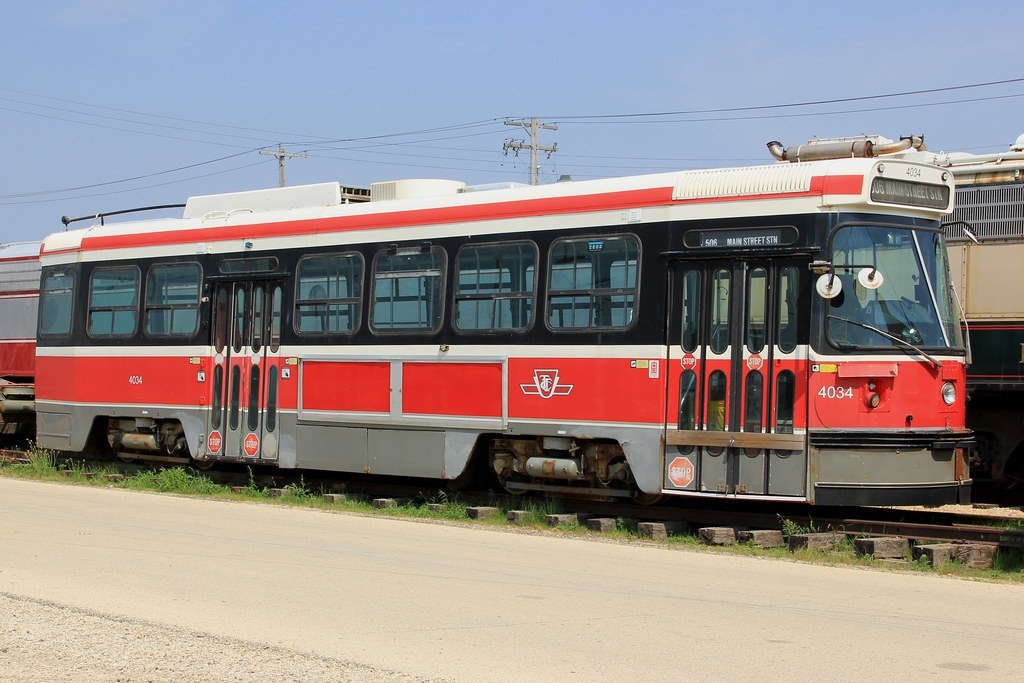

Car 4034 on display at IRM in 2023 Flickr photo: https://www.flickr.com/photos/14581588@N05/53280113184/ |
