Current Number | 1271 |
---|---|
Railway Represented | San Francisco Municipal Railway |
Builder | Boeing-Vertol |
Built In | 1978 |
Builder's order id | |
Currently in (State) | California |
--(Locality) | Geyserville |
Totally out of svc date | ? |
(Initial retirement date) | |
Car Type | rapid transit car |
-subtype | Light Rail Vehicle |
-designation | |
Status | stored inoperable |
More info | |
Gauge | 4'8.5" |
Construction | steel |
Roof type | AR |
Ended | DE |
Length | 71'0" |
Width | 8'10" |
Height | 11'4" |
Weight | 67000 |
#Seats | 68 |
#Wheels/Conf. | 12 |
Total HP | 420 |
Trucks | Boeing/Tokyo |
Brakes | Air-Hydraulic |
Compressor | D4-S |
Control | Thyristor chopper |
Motors | Garrett (2) |
Voltage (if not 600DC) |

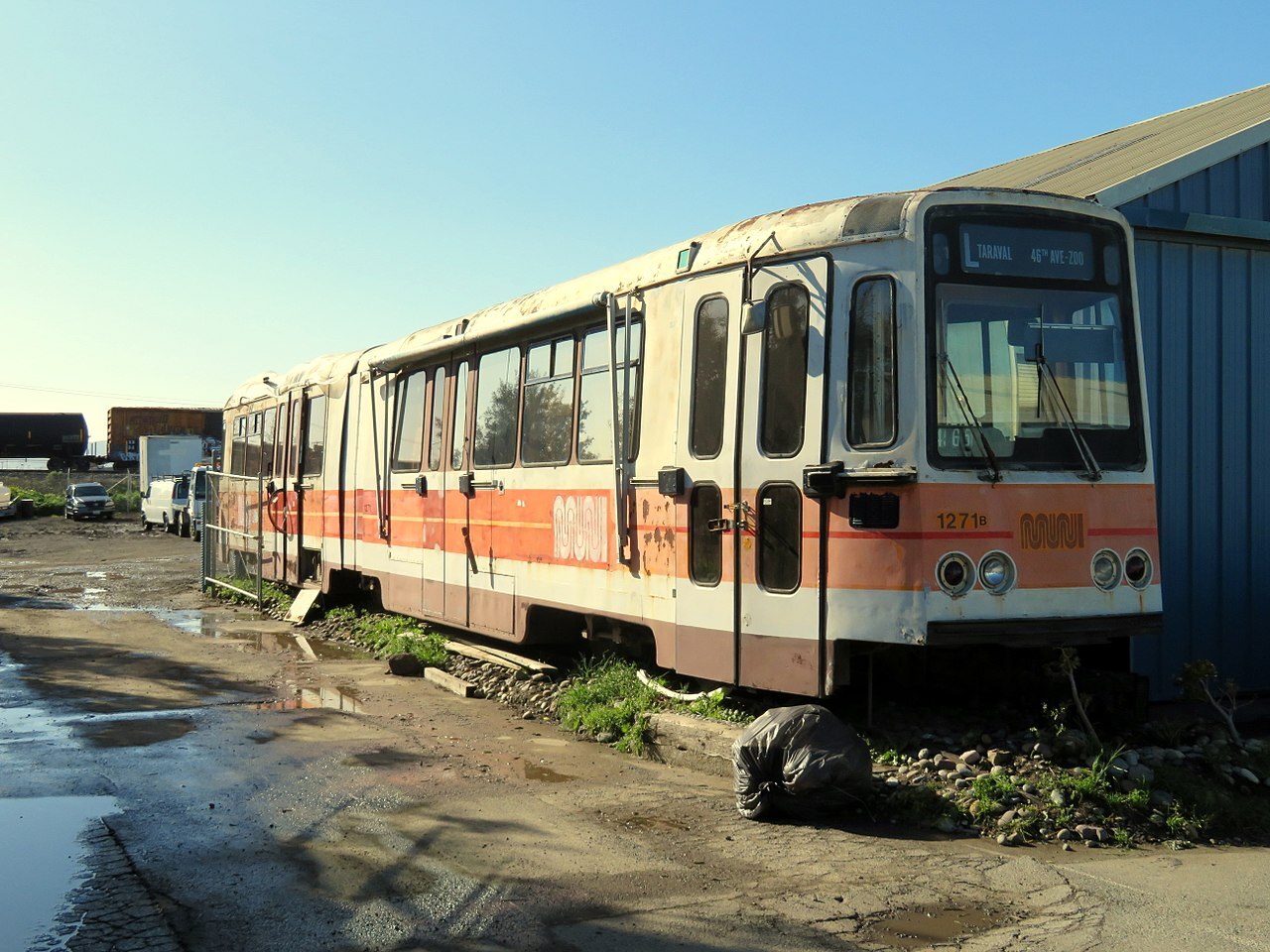

Car 1271 in storage in Richmond, California, in 2018 Wikipedia photo: https://commons.wikimedia.org/wiki/File:Muni_1271_in_a_scrapyard,_March_2018.JPG |

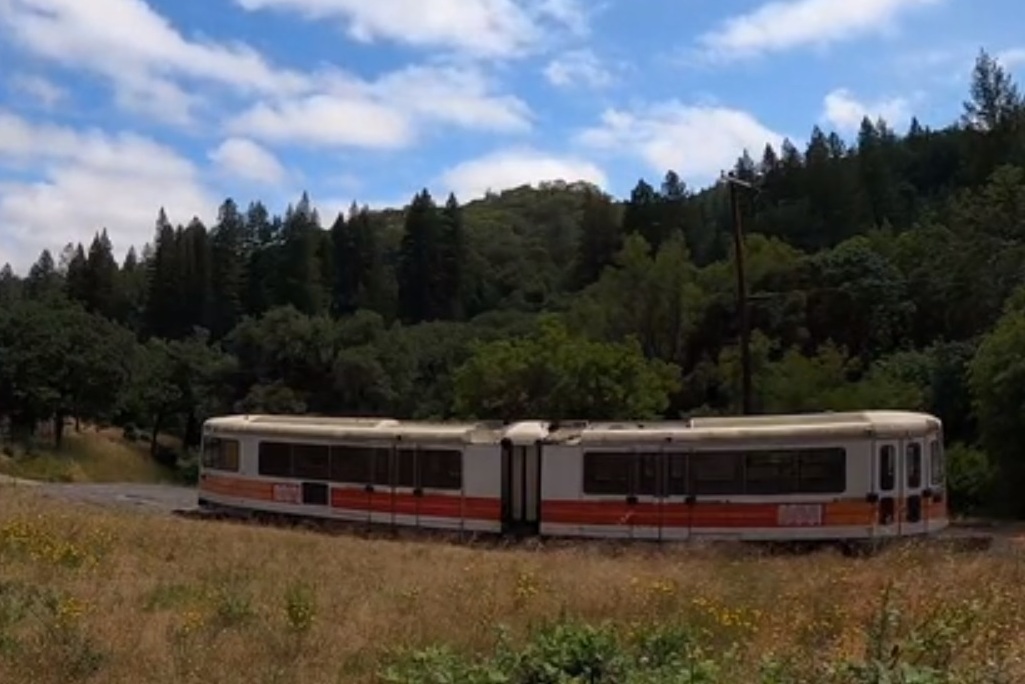

Car 1271 upon arrival in Geyserville, California, in 2023 Preserved Traction Blog photo: https://pnaerc.blogspot.com/2023/11/camp-out-in-lrv.html |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
San Francisco Municipal Railway (California, San Francisco) | 1271 | 1978 | 1998? | NO | NO |
Private owner | 1271 | 1998? | 2023 | YES | NO |
Camp MUNI at Rancho Margarita (California, Geyserville) | 1271 | 2023 | present | YES | NO |
