Facts and Figures
| Current Number | 4547 |
|---|---|
| Railway Represented | Brooklyn Rapid Transit |
| Builder | Jewett Car Company |
| Built In | 1906 |
| Builder's order id | |
| Currently in (State) | Maine |
| --(Locality) | Kennebunkport |
| Totally out of svc date | 1956 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | convertible |
| -designation | |
| Status | displayed inoperable |
| More info | http://www.trolleymuseum.org/collection/vehicle/04547SNY.php |
| Gauge | 4'8.5" |
| Construction | wood |
| Roof type | DR |
| Ended | DE |
| Length | 42'6" |
| Width | 8'3" |
| Height | 12'0" |
| Weight | 48500 |
| #Seats | 44 |
| #Wheels/Conf. | 8 |
| Total HP | 200 |
| Trucks | Baldwin 185-P25 |
| Brakes | Straight Air (SY2) |
| Compressor | National A6 |
| Control | K-28B |
| Motors | WH 101B (4) |
| Voltage (if not 600DC) |
 |

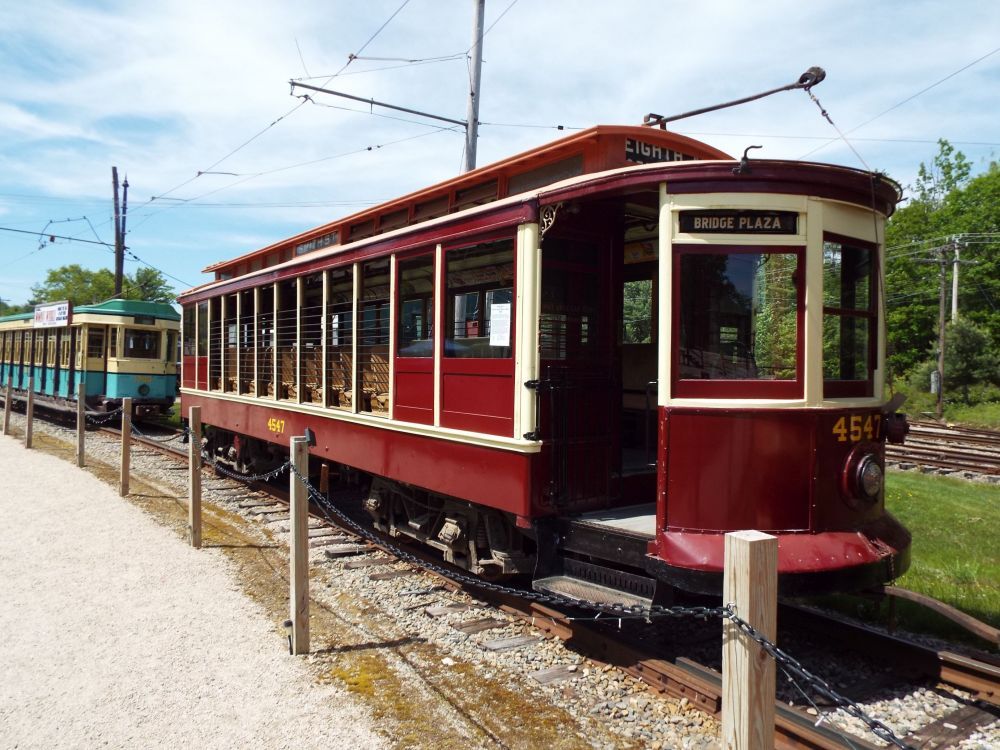

Car 4547 during switching at Seashore in 2019 Seashore Trolley Museum photo: https://collections.trolleymuseum.org/items/37 |
 |

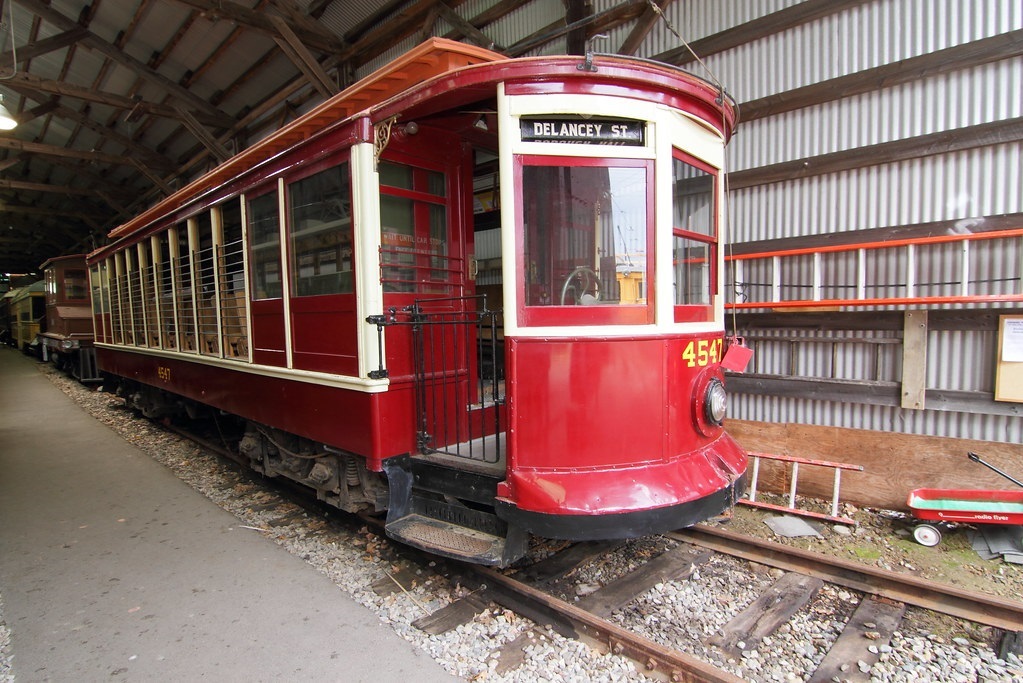

Car 4547 on display at Seashore in 2012 Flickr photo: https://www.flickr.com/photos/doctorh62/7457845758/ |
