Current Number | 3333 |
---|---|
Railway Represented | Massachusetts Bay Transit Authority |
Builder | Pullman-Standard |
Built In | 1945 |
Builder's order id | W6699 |
Currently in (State) | Connecticut |
--(Locality) | East Windsor |
Totally out of svc date | 1978 |
(Initial retirement date) | |
Car Type | streetcar |
-subtype | PCC, prewar |
-designation | |
Status | stored inoperable |
More info | |
Gauge | 4'8.5" |
Construction | steel |
Roof type | AR |
Ended | DE |
Length | 47'0" |
Width | 8'4" |
Height | 11'1" |
Weight | 37800 |
#Seats | 42 |
#Wheels/Conf. | 8 |
Total HP | 220 |
Trucks | Clark B2 |
Brakes | Air-Electric |
Compressor | PC-2 |
Control | WH XD423N |
Motors | WH 1432HE (4) |
Voltage (if not 600DC) |

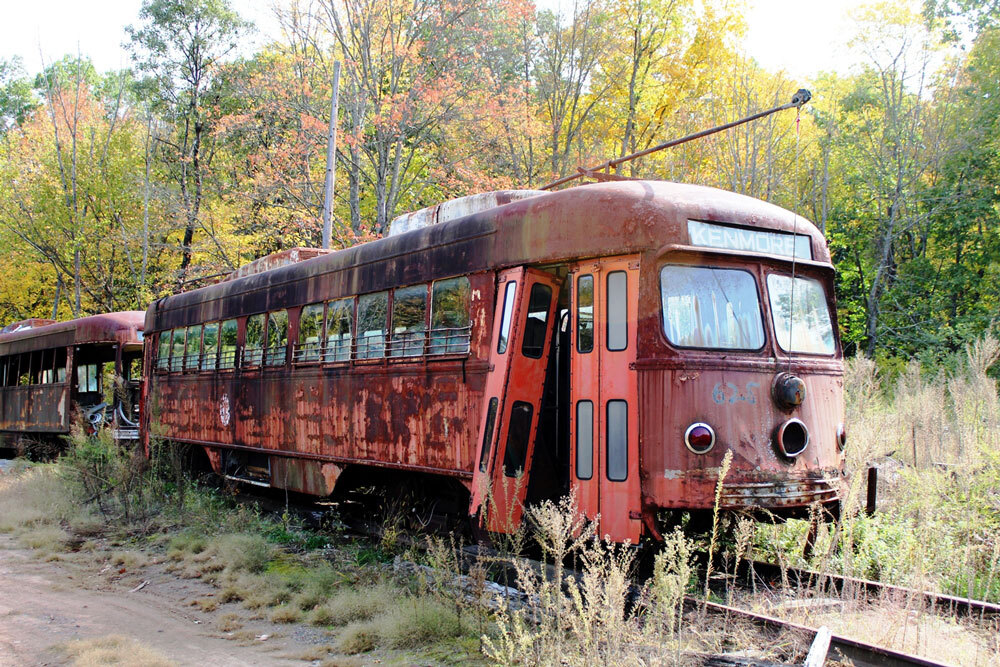

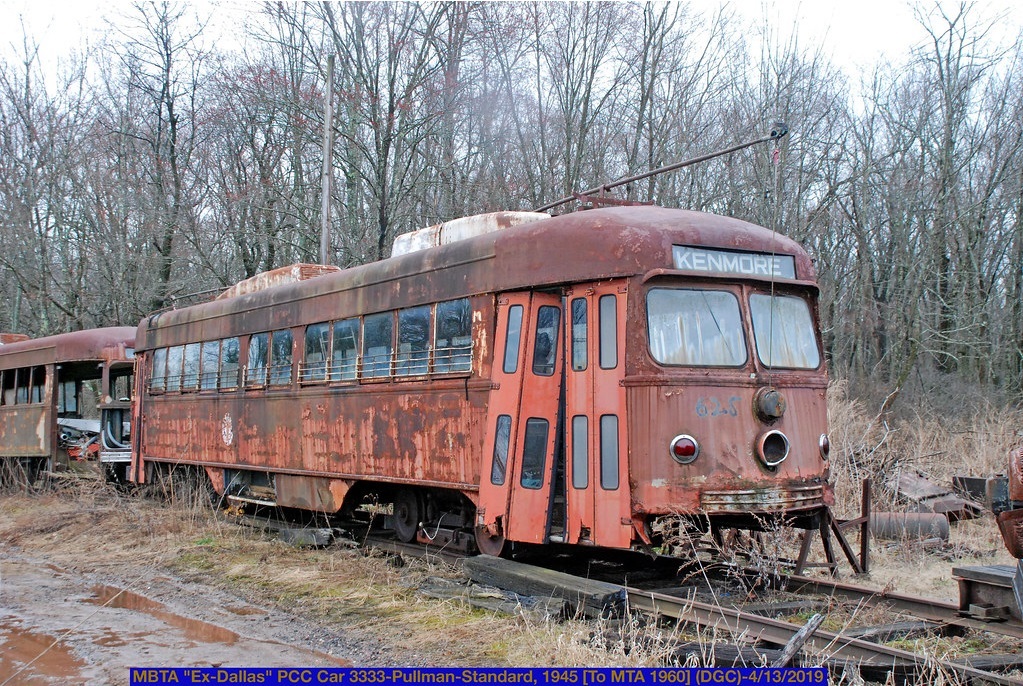

Car 3333 in storage at CTM in 2019 Flickr photo: https://www.flickr.com/photos/widecab/51866851730/ |
Car 3333 in storage at CTM in 2020 British Trams Online photo: http://www.britishtramsonline.co.uk/gallery906-82.html |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
Dallas Railway & Terminal (Texas, Dallas) | 625 | 1945 | 1959 | NO | NO |
Boston Metropolitan Transit Authority (Massachusetts, Boston) | 3333 | 1959 | 1964 | NO | NO |
Massachusetts Bay Transit Authority (Massachusetts, Boston) | 3333 | 1964 | 1978 | NO | NO |
Connecticut Trolley Museum (Connecticut, East Windsor) | 3333 | 1978 | present | YES | NO |
