Current Number | 2052 |
---|---|
Railway Represented | Montreal Tramways |
Builder | Wason Manufacturing Company |
Built In | 1927 |
Builder's order id | |
Currently in (State) | Maine |
--(Locality) | Kennebunkport |
Totally out of svc date | 1963 |
(Initial retirement date) | 1958 |
Car Type | streetcar |
-subtype | lightweight car |
-designation | |
Status | stored inoperable |
More info | http://www.trolleymuseum.org/collection/vehicle/02052SQC.php |
Gauge | 4'8.5" |
Construction | steel |
Roof type | AR |
Ended | DE |
Length | 45'5" |
Width | 8'8" |
Height | 11'10" |
Weight | 36000 |
#Seats | 44 |
#Wheels/Conf. | 8 |
Total HP | 160 |
Trucks | Sydney #9 |
Brakes | Straight Air |
Compressor | DH-16 |
Control | GE PC-5 (C129D) |
Motors | GE 247 (4) |
Voltage (if not 600DC) |

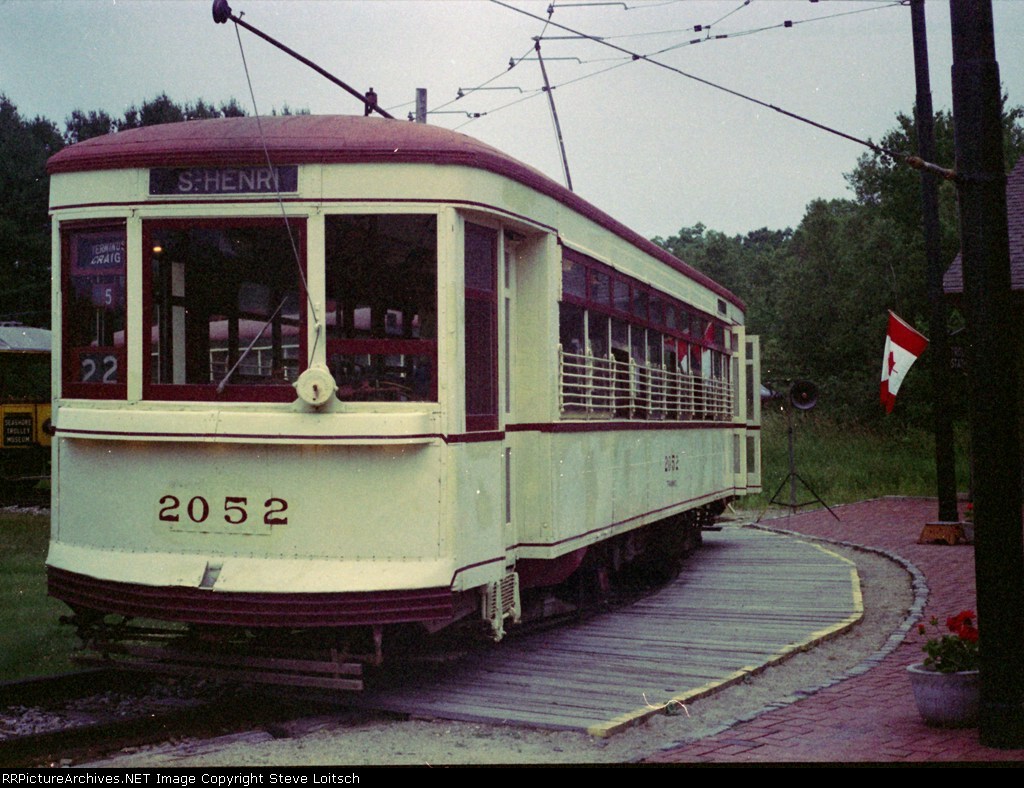

Car 2052 in operation at Seashore circa 2003 Railroad Picture Archives photo: http://www.rrpicturearchives.net/showPicture.aspx?id=545275 |

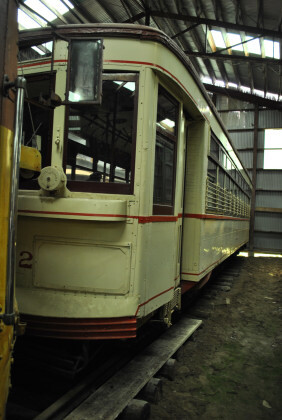

Car 2052 in storage at Seashore in 2015 Trainweb.org photo: http://www.trainweb.org/chris/15seashore2.html |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
Springfield Street Railway (Massachusetts, Springfield) | 570 | 1927 | 1940 | NO | NO |
Montreal Tramways (Quebec, Montreal) | 2052 | 1940 | 1963 | NO | NO |
Seashore Trolley Museum (Maine, Kennebunkport) | 2052 | 1963 | present | YES | NO |
