Facts and Figures
| Current Number | 5 |
|---|---|
| Railway Represented | Philadelphia Suburban Transportation |
| Builder | J.G. Brill Company |
| Built In | 1941 |
| Builder's order id | 23961 |
| Currently in (State) | Pennsylvania |
| --(Locality) | Washington |
| Totally out of svc date | 1982 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | Brilliner suburban |
| -designation | |
| Status | displayed inoperable |
| More info | http://www.pa-trolley.org/Roster/PSTC5.htm |
| Gauge | 5'2.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 48'4" |
| Width | 8'10" |
| Height | 10'0" |
| Weight | 42350 |
| #Seats | 56 |
| #Wheels/Conf. | 8 |
| Total HP | 300 |
| Trucks | Brill 89E1 |
| Brakes | Air-Electric |
| Compressor | WABCO DH16 |
| Control | WH XD179 |
| Motors | WH 1433B (4) |
| Voltage (if not 600DC) |
 |

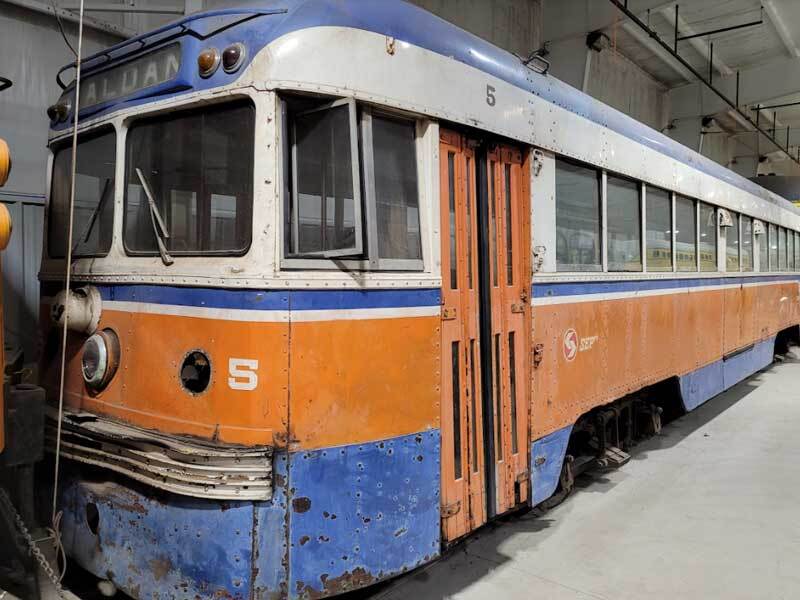

Car 5 on display at PTM in 2023 Flickr photo: https://www.flickr.com/photos/146757535@N05/53278593251/ |
 |

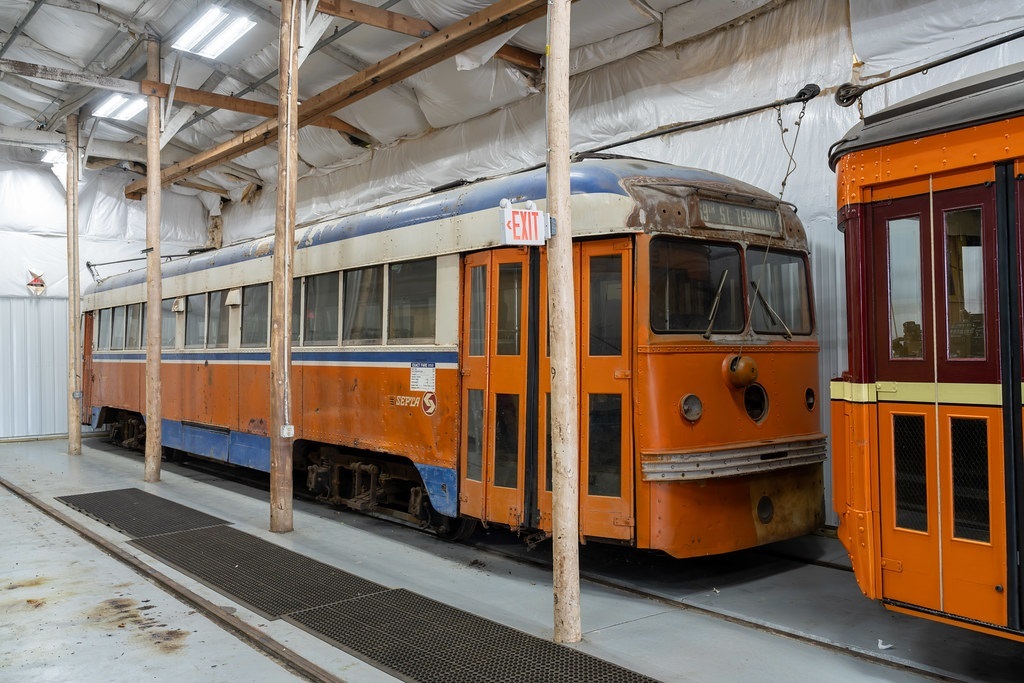

Car 5 on display at PTM Pennsylvania Trolley Museum photo: https://pa-trolley.org/collection/red-arrow-lines-5/ |
