Facts and Figures
| Current Number | 798 |
|---|---|
| Railway Represented | Market Street Railway |
| Builder | Market Street Railway |
| Built In | 1924 |
| Builder's order id | 202 |
| Currently in (State) | California |
| --(Locality) | San Francisco |
| Totally out of svc date | 1944 |
| (Initial retirement date) | 1941 |
| Car Type | streetcar |
| -subtype | closed |
| -designation | |
| Status | undergoing restoration |
| More info | http://www.streetcar.org/mim/streetcars/fleet/historic/798/index.html |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 47'0" |
| Width | 9'3" |
| Height | |
| Weight | 38895 |
| #Seats | 50 |
| #Wheels/Conf. | 8 |
| Total HP | 140 |
| Trucks | Peckham 14B3 |
| Brakes | SME (M18) |
| Compressor | CP-28 |
| Control | K-12 |
| Motors | GE 52 (4) |
| Voltage (if not 600DC) |
 |
Car 798 in storage in San Francisco in 2023 San Francisco Standard photo: https://sfstandard.com/2023/02/10/a-streetcar-named-maya-angelou-sf-honors-its-most-important-black-poet/ |
 |

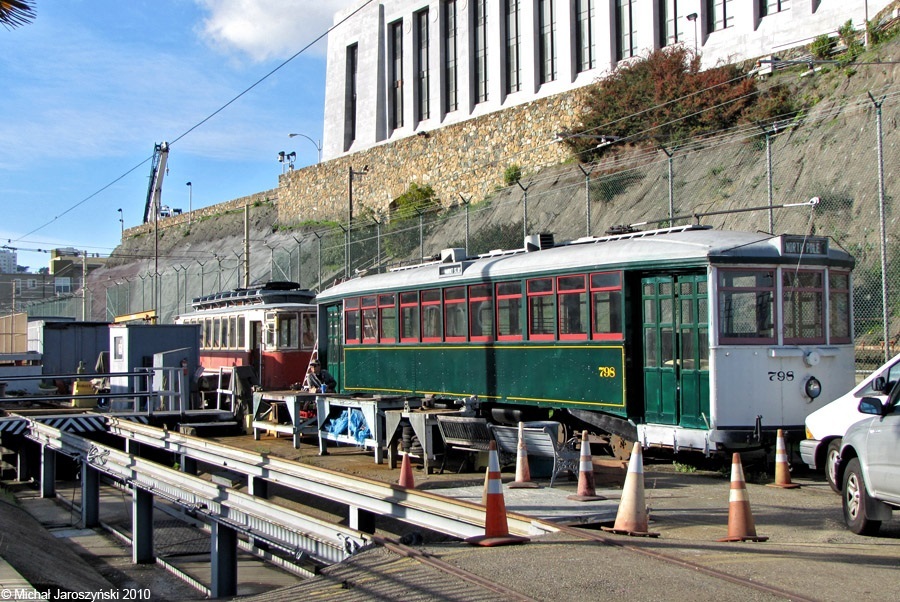

Car 798 in storage in San Francisco in 2010 Phototrans.eu photo: https://phototrans.eu/14,476527,0.html |
