Facts and Figures
| Current Number | 696 |
|---|---|
| Railway Represented | Ottawa Transportation Commission |
| Builder | Ottawa Car Manufacturing Company |
| Built In | 1917 |
| Builder's order id | |
| Currently in (State) | Ontario |
| --(Locality) | Ottawa |
| Totally out of svc date | 1959 |
| (Initial retirement date) | 1958 |
| Car Type | streetcar |
| -subtype | closed |
| -designation | |
| Status | undergoing restoration |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | DR |
| Ended | SE |
| Length | 49'6" |
| Width | 8'6" |
| Height | |
| Weight | |
| #Seats | 42 |
| #Wheels/Conf. | 8 |
| Total HP | 200 |
| Trucks | Brill 27FE1 |
| Brakes | SME (M28F) |
| Compressor | WABCO DH16 |
| Control | K-35 |
| Motors | WH 101B2 (4) |
| Voltage (if not 600DC) |
 |

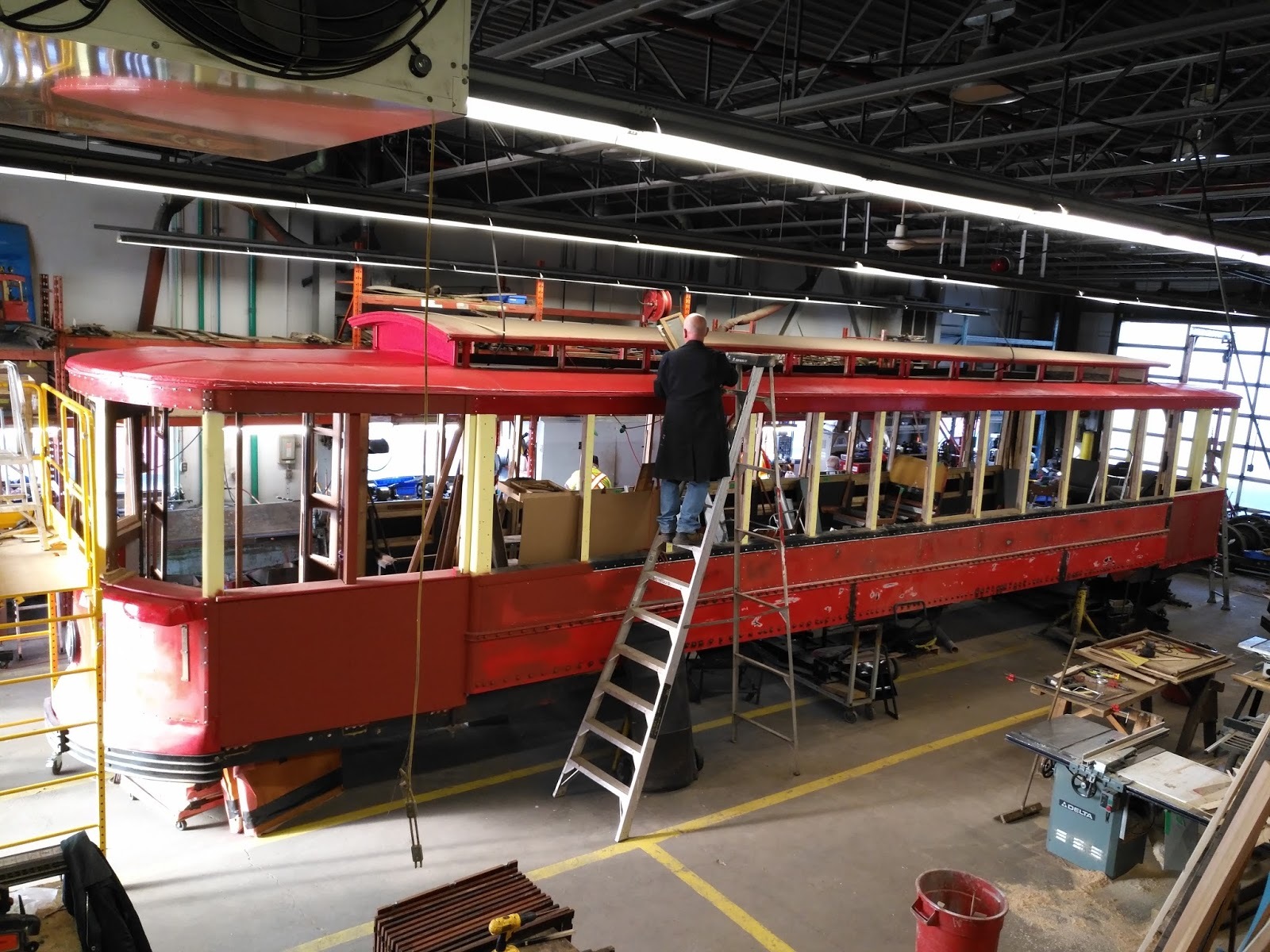

Car 696 under restoration in 2018 Preserved Traction Blog photo: https://pnaerc.blogspot.com/2018/12/ottawa-696-restoration-progress.html |
 |

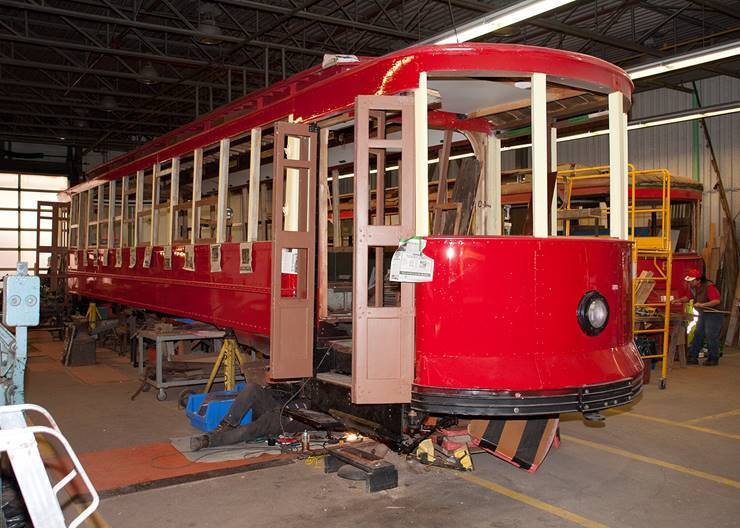

Car 696 under restoration circa 2018 Streetcar 696 Blog photo: https://streetcarken.blogspot.com/ |
