Facts and Figures
| Current Number | 356 |
|---|---|
| Railway Represented | Johnstown Traction |
| Builder | St. Louis Car Company |
| Built In | 1925 |
| Builder's order id | 1380 |
| Currently in (State) | Connecticut |
| --(Locality) | East Haven |
| Totally out of svc date | 1962 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | safety car |
| -designation | |
| Status | undergoing restoration |
| More info | http://www.bera.org/cgi-bin/viewcar.pl?car=356 |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 41'0" |
| Width | 8'2" |
| Height | 11'4" |
| Weight | 38000 |
| #Seats | 44 |
| #Wheels/Conf. | 8 |
| Total HP | 140 |
| Trucks | St Louis EDJ64 |
| Brakes | SME (M28) |
| Compressor | WABCO DH16 |
| Control | K-35KK |
| Motors | WH 510A2 (4) |
| Voltage (if not 600DC) |
 |
Car 356 under restoration at Branford in 2019 photo: https://www.facebook.com/branfordelectricrailwayshop/photos/pb.100057702030111.-2207520000/2379470272293493/?type=3 |
 |

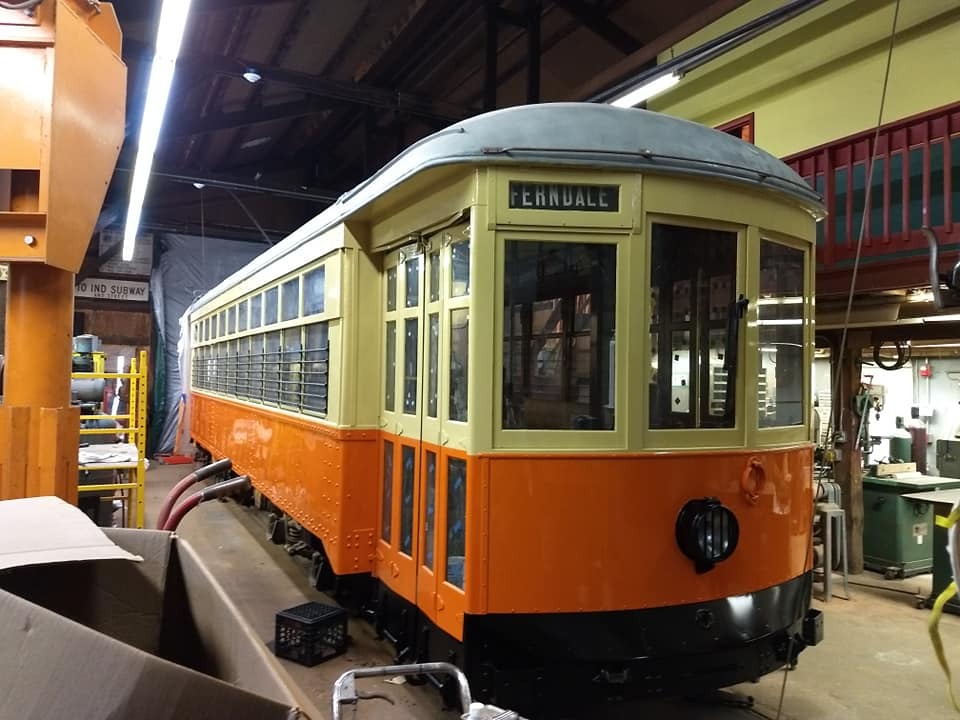

Car 356 in the shop at Branford in 2019 photo: https://www.facebook.com/branfordelectricrailwayshop/photos/pb.100057702030111.-2207520000/2368124283428092/?type=3 |
