Facts and Figures
| Current Number | 1 |
|---|---|
| Railway Represented | West Penn |
| Builder | West Penn |
| Built In | 1915 |
| Builder's order id | |
| Currently in (State) | Pennsylvania |
| --(Locality) | Washington |
| Totally out of svc date | 1958 |
| (Initial retirement date) | |
| Car Type | locomotive |
| -subtype | box cab |
| -designation | |
| Status | operated occasionally |
| More info | http://www.pa-trolley.org/Roster/WP1.htm |
| Gauge | 5'2.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 18'0" |
| Width | 8'0" |
| Height | 10'1" |
| Weight | 53500 |
| #Seats | n/a |
| #Wheels/Conf. | 4 |
| Total HP | 150 |
| Trucks | Brill 21 |
| Brakes | SME (M20) |
| Compressor | GE CP30 |
| Control | K-11 |
| Motors | WH 56 (2) |
| Voltage (if not 600DC) |
 |

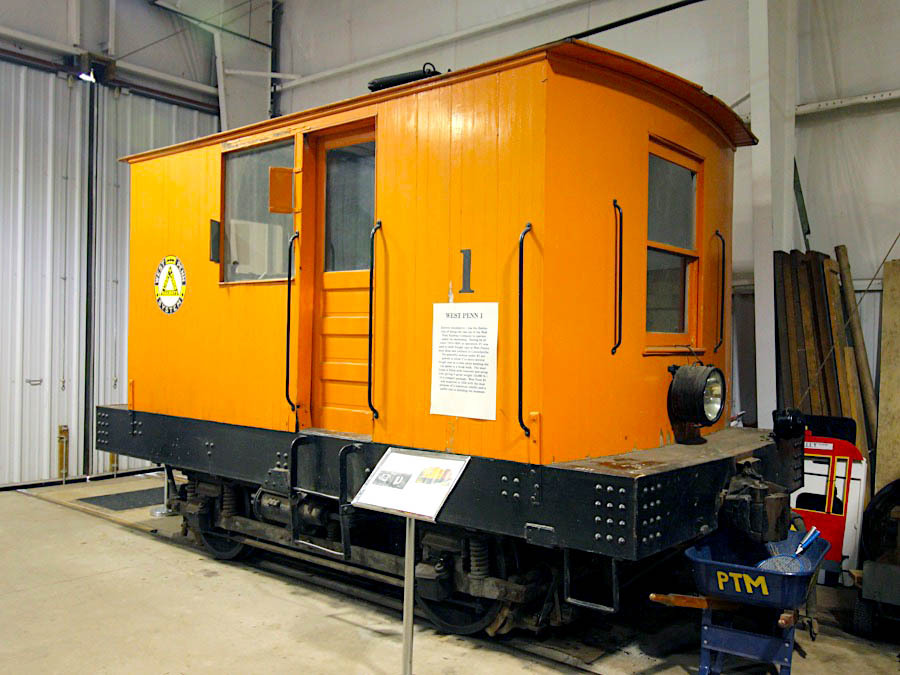

West Penn 1 on display at PTM in 2019 Hawkins Rails photo: https://hawkinsrails.net/preservation/ptm/ptm_equipment.html |
 |

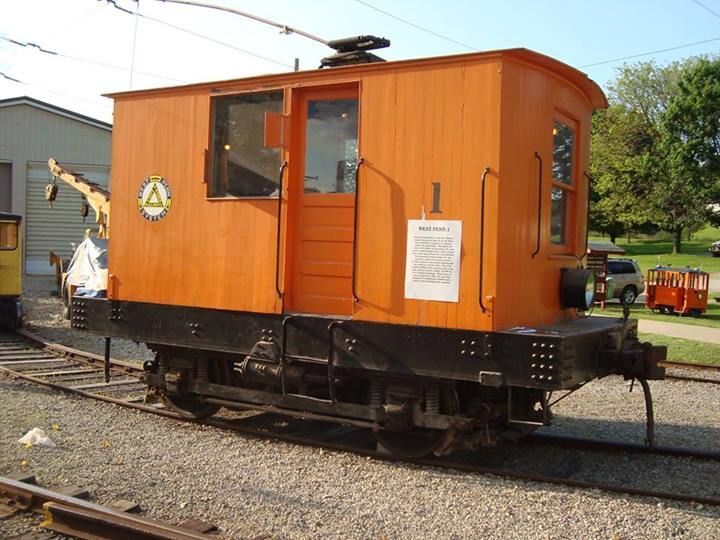

West Penn 1 at PTM photo: https://www.pinterest.com/pin/meet-west-penn-1-one-of-the-pa-trolley-museums-nontrolley-pieces-of-equipment-electric-locomotive-1-has-the-di--303359724873157922/ |
