Current Number | 171 |
---|---|
Railway Represented | San Francisco Municipal Railway |
Builder | Bethlehem |
Built In | 1923 |
Builder's order id | |
Currently in (State) | California |
--(Locality) | Perris |
Totally out of svc date | 1959 |
(Initial retirement date) | |
Car Type | streetcar |
-subtype | closed |
-designation | Class K |
Status | displayed operable |
More info | http://www.oerm.org/pages/Muni%20171.html |
Gauge | 4'8.5" |
Construction | steel |
Roof type | AR |
Ended | DE |
Length | 47'1" |
Width | 9'2" |
Height | 12'2" |
Weight | 51000 |
#Seats | 50 |
#Wheels/Conf. | 8 |
Total HP | 240 |
Trucks | Standard O50 |
Brakes | SM3 |
Compressor | DH-16 |
Control | WH HL (15B) |
Motors | WH 306CA (4) |
Voltage (if not 600DC) |

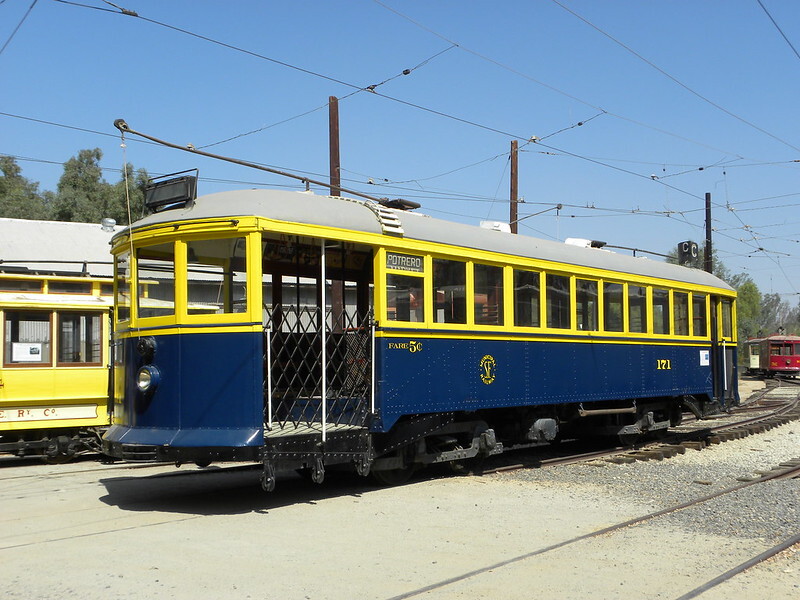

Car 171 in operation at SCRM in 2009 Southern California Railway Museum photo: https://socalrailway.org/collections/other-electric-railways/other-electric-railways-roster/ |

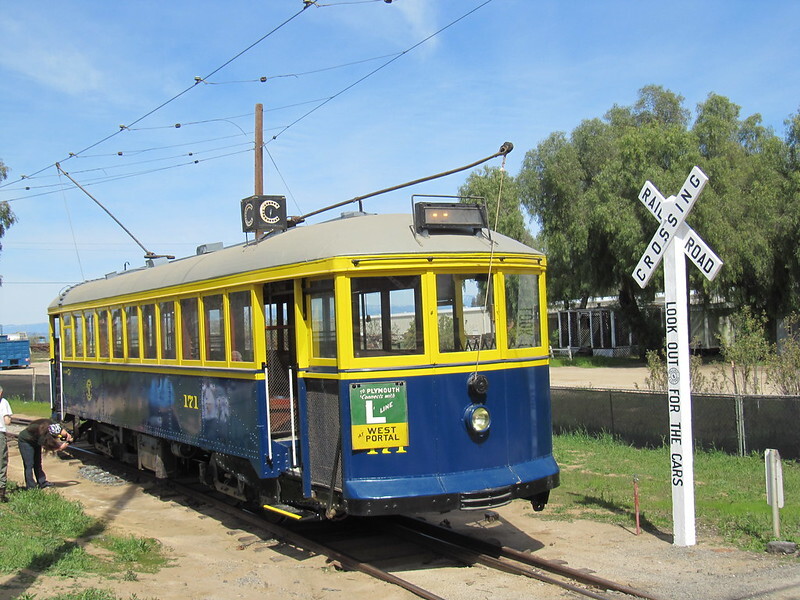

Car 171 in operation at SCRM in 2011 Flickr photo: https://www.flickr.com/photos/76677346@N04/51165387054/ |
Owner | Car Num | From | To | Preservation? | Loan? |
---|---|---|---|---|---|
San Francisco Municipal Railway (California, San Francisco) | 171 | 1923 | 1959 | NO | NO |
Southern California Railway Museum (California, Perris) | 171 | 1959 | present | YES | NO |
