Facts and Figures
| Current Number | 162 |
|---|---|
| Railway Represented | San Francisco Municipal Railway |
| Builder | Jewett Car Company |
| Built In | 1914 |
| Builder's order id | |
| Currently in (State) | California |
| --(Locality) | San Francisco |
| Totally out of svc date | 1958 |
| (Initial retirement date) | |
| Car Type | streetcar |
| -subtype | closed |
| -designation | Class B |
| Status | undergoing restoration |
| More info | http://www.streetcar.org/mim/streetcars/fleet/historic/162/index.html |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 47'1" |
| Width | 9'3" |
| Height | 12'3" |
| Weight | 48000 |
| #Seats | 46 |
| #Wheels/Conf. | 8 |
| Total HP | 200 |
| Trucks | Baldwin L-plate |
| Brakes | Straight Air |
| Compressor | CP-28 |
| Control | WH HL (15B) |
| Motors | WH 532A (4) |
| Voltage (if not 600DC) |
 |

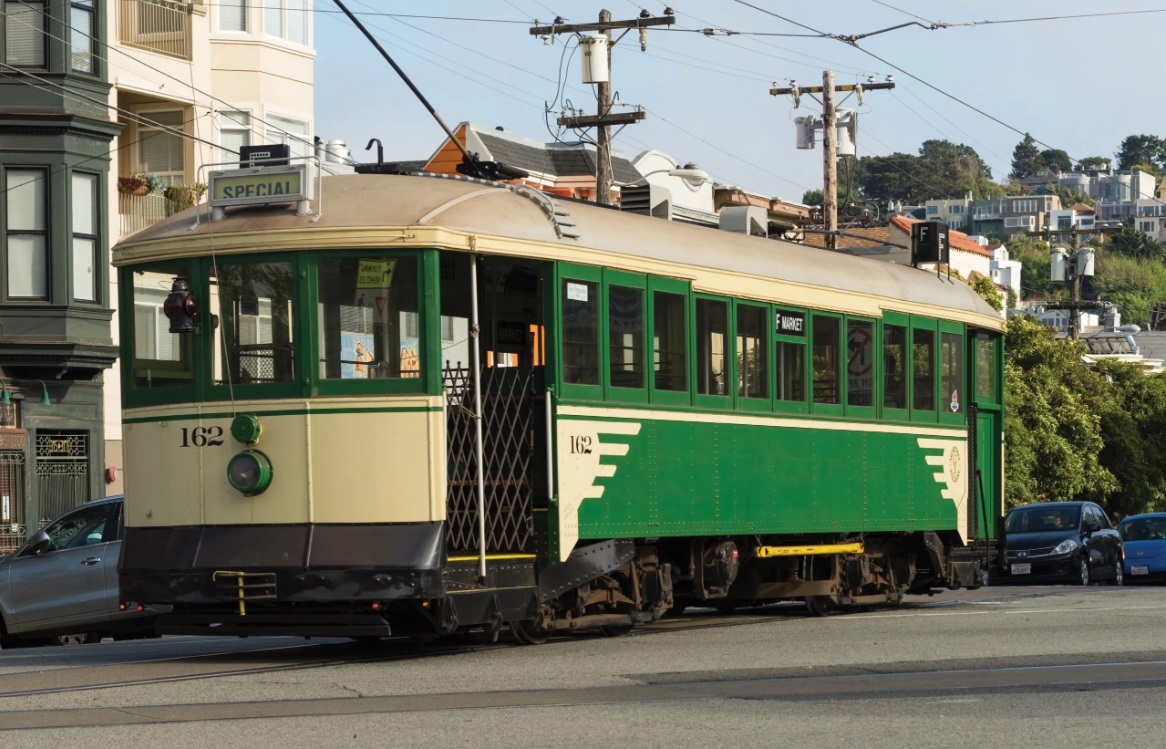

Car 162 in operation in San Francisco Market Street Railway Association photo: https://www.streetcar.org/streetcars/162-162-muni-1950s-livery/ |
 |

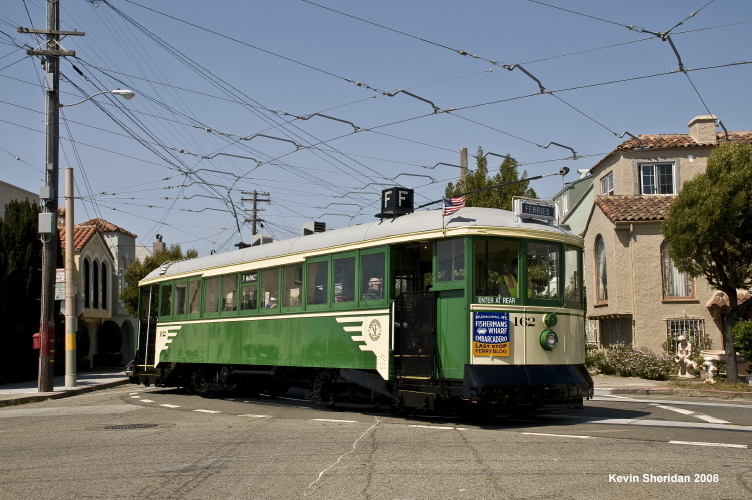

Car 162 in operation in San Francisco in 2008 Flickr photo: https://www.flickr.com/photos/bythabay/2426505221/ |
