Facts and Figures
| Current Number | 832 |
|---|---|
| Railway Represented | West Penn |
| Builder | Cincinnati Car Company |
| Built In | 1930 |
| Builder's order id | 3045 |
| Currently in (State) | Pennsylvania |
| --(Locality) | Washington |
| Totally out of svc date | 1953 |
| (Initial retirement date) | 1952 |
| Car Type | interurban |
| -subtype | curveside suburban |
| -designation | |
| Status | operated occasionally |
| More info | http://www.pa-trolley.org/Roster/WP832.htm |
| Gauge | 5'2.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 47'3" |
| Width | 8'7" |
| Height | 10'7" |
| Weight | 32000 |
| #Seats | 48 |
| #Wheels/Conf. | 8 |
| Total HP | 140 |
| Trucks | Cincinnati Arch Bar |
| Brakes | SME (M28) |
| Compressor | DH-16 |
| Control | K-75A |
| Motors | WH 1425A (4) |
| Voltage (if not 600DC) |
 |

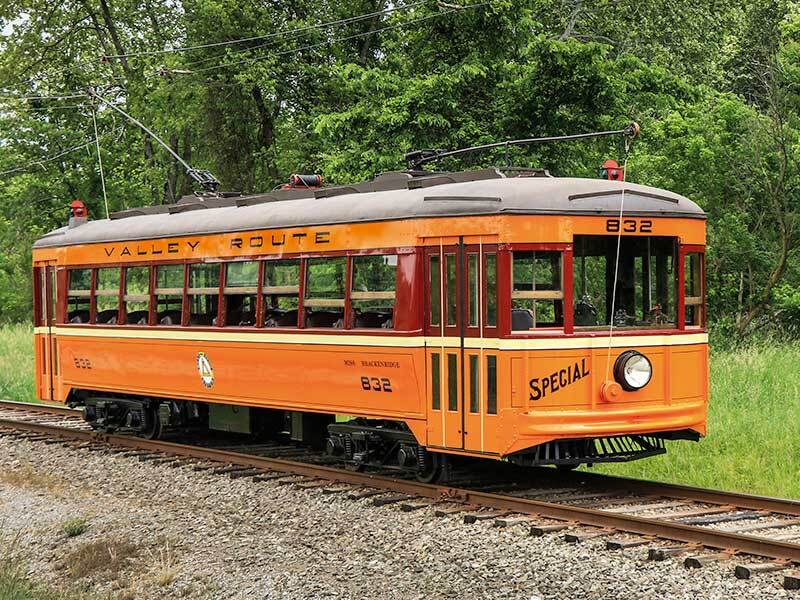

Car 832 in operation at PTM Pennsylvania Trolley Museum photo: https://pa-trolley.org/collection/west-penn-railways-832/ |
 |

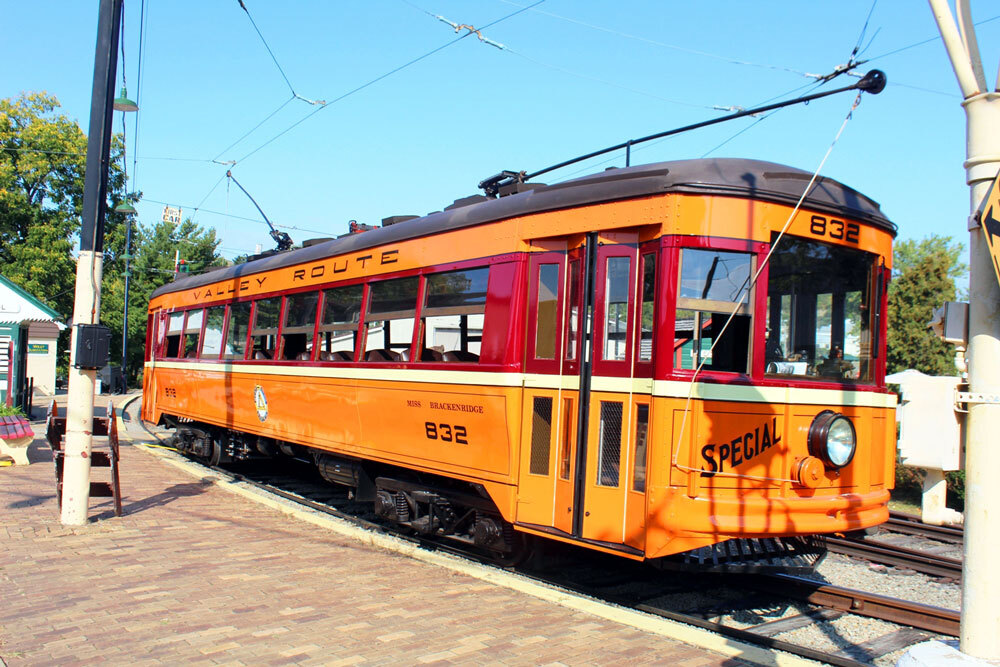

Car 832 in operation at PTM in 2020 British Trams Online photo: http://www.britishtramsonline.co.uk/gallery910-35.html |
