Facts and Figures
| Current Number | 66 |
|---|---|
| Railway Represented | Philadelphia Suburban Transportation |
| Builder | J.G. Brill Company |
| Built In | 1926 |
| Builder's order id | 22212 |
| Currently in (State) | Pennsylvania |
| --(Locality) | Washington |
| Totally out of svc date | 1970 |
| (Initial retirement date) | |
| Car Type | interurban |
| -subtype | center entrance |
| -designation | |
| Status | operated often |
| More info | http://www.pa-trolley.org/Roster/PSTC66.htm |
| Gauge | 5'2.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 47'10" |
| Width | 8'7" |
| Height | 12'5" |
| Weight | 59280 |
| #Seats | 62 |
| #Wheels/Conf. | 8 |
| Total HP | 140 |
| Trucks | Brill 27MCB2X |
| Brakes | SME (S-E6) |
| Compressor | GE CP28 |
| Control | GE M (C97) |
| Motors | GE 203L (4) |
| Voltage (if not 600DC) |
 |

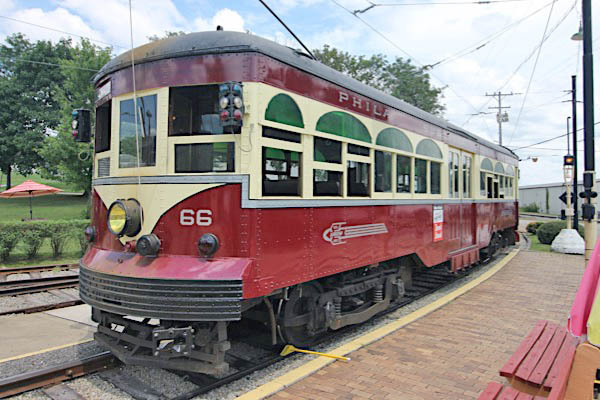

Car 66 in operation at PTM Pennsylvania Trolley Museum photo: https://pa-trolley.org/collection/red-arrow-lines-66/ |
 |

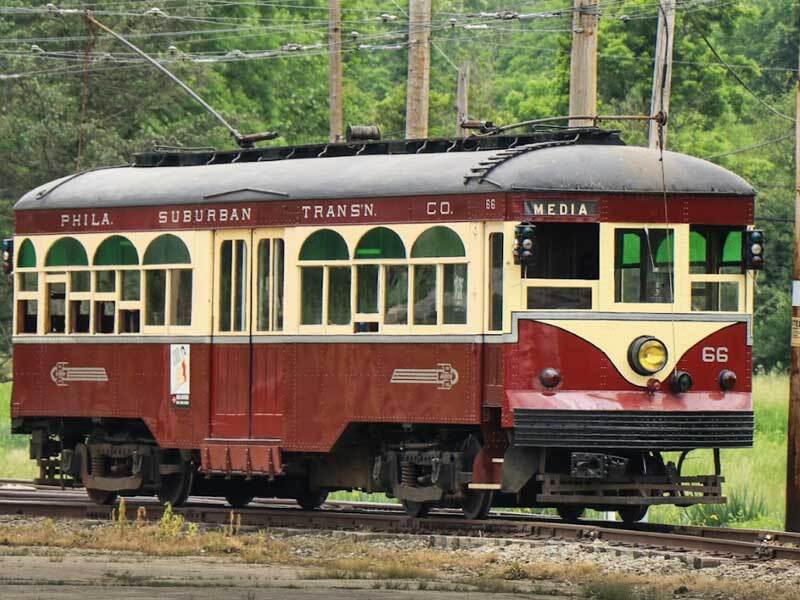

Car 66 in operation at PTM in 2019 HawkinsRails.net photo: https://hawkinsrails.net/preservation/ptm/ptm_trolleys.html |
