Facts and Figures
| Current Number | 167 |
|---|---|
| Railway Represented | Key System |
| Builder | Bethlehem |
| Built In | 1937 |
| Builder's order id | |
| Currently in (State) | California |
| --(Locality) | Perris |
| Totally out of svc date | 1958 |
| (Initial retirement date) | |
| Car Type | rapid transit car |
| -subtype | two-car articulated set |
| -designation | |
| Status | stored inoperable |
| More info | |
| Gauge | 4'8.5" |
| Construction | steel |
| Roof type | AR |
| Ended | DE |
| Length | 110'6" |
| Width | 8'10" |
| Height | 14'2" |
| Weight | 137625 |
| #Seats | 140 |
| #Wheels/Conf. | 12 |
| Total HP | 420 |
| Trucks | Commonwealth |
| Brakes | AMM (M24D) |
| Compressor | GE CP28 (2) |
| Control | GE M (C6J) |
| Motors | GE 240H5 (4) |
| Voltage (if not 600DC) |
 |

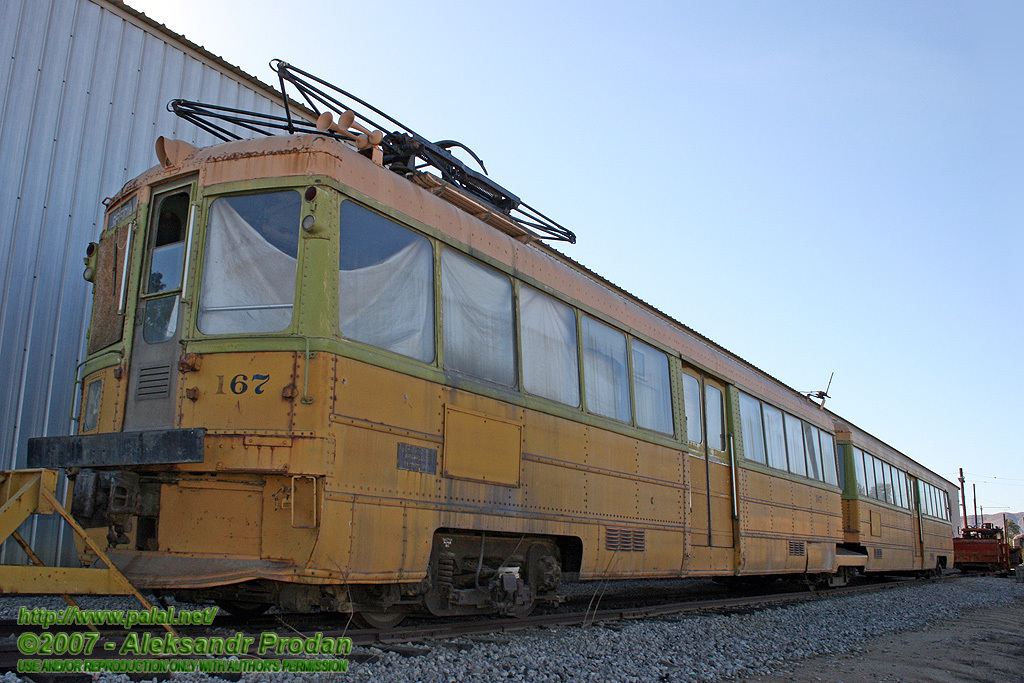

Car 167 in storage at SCRM in 2007 Transphoto.org photo: https://transphoto.org/photo/391916/?&lang=en |
 |

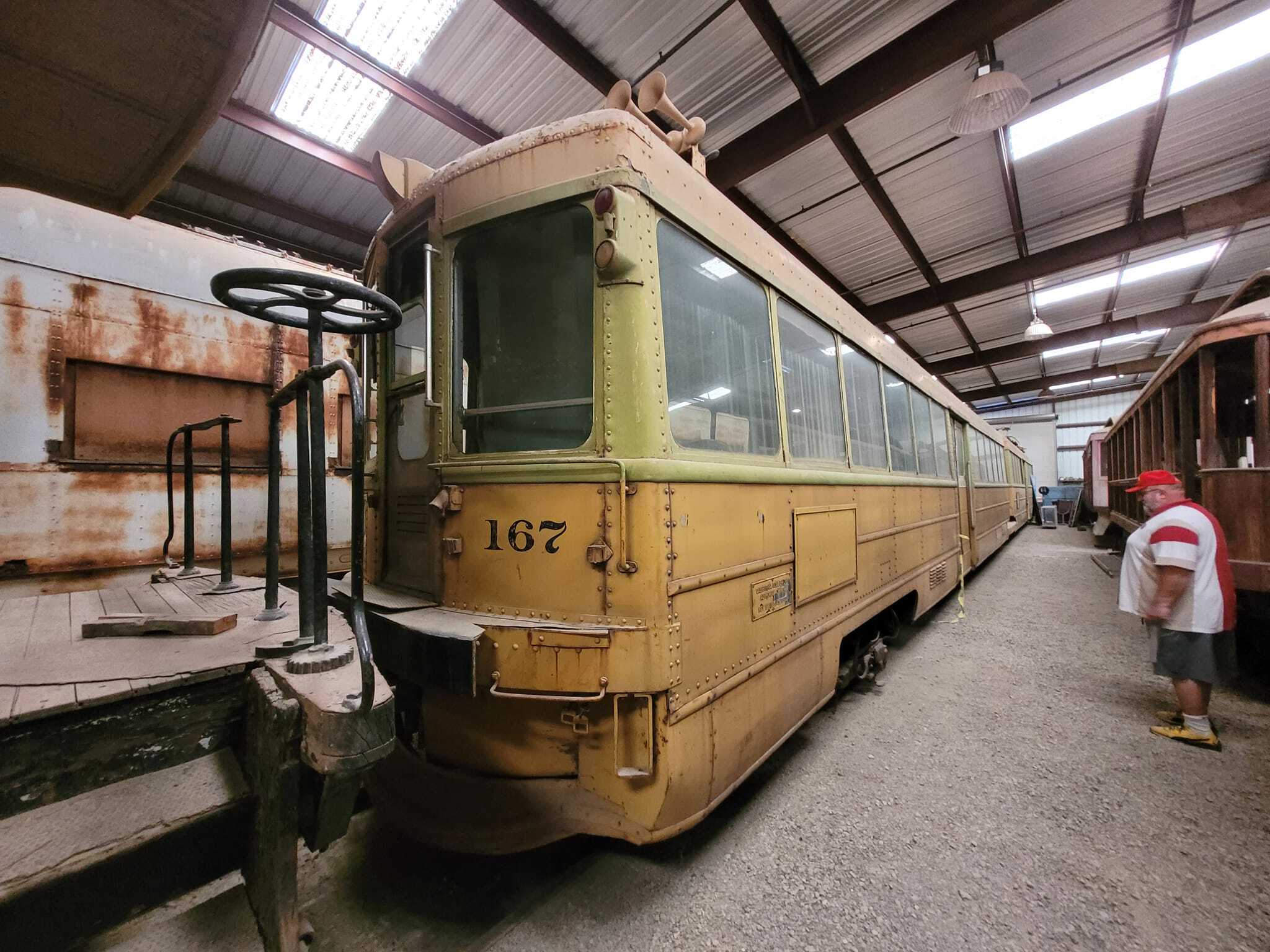

Car 167 in storage at SCRM in 2023 photo: https://www.facebook.com/photo/?fbid=10232369528450452&set=pcb.6158019327637404 |
